微功耗，高精度 Micropower, High Accuracy
Product Details

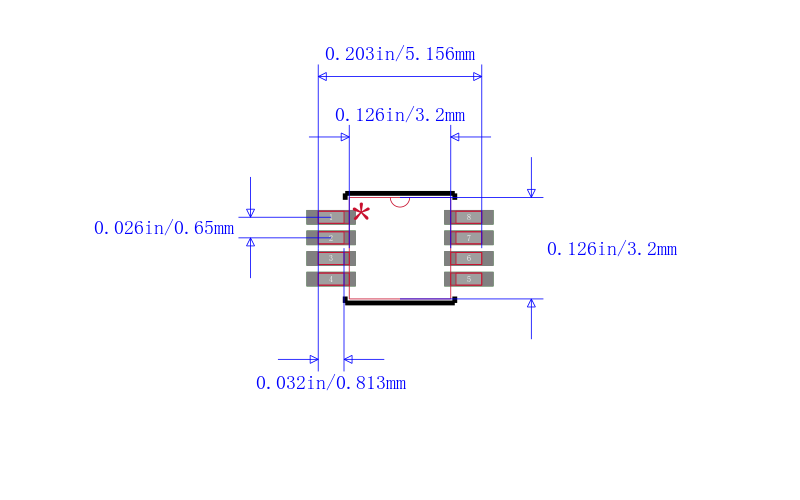

The ADR3525W, ADR3530W, ADR3533W, ADR3540W, and ADR3550W are low cost, low power, high precision CMOS voltage references, featuring a maximum TC of 5ppm/°C B grade, low operating current, and low output noise in an 8 lead MSOP package. For high accuracy, output voltage and temperature coefficient are trimmed digitally during final assembly using Analog Devices, Inc., patented DigiTrim® technology.
The low output voltage hysteresis and low long-term output voltage drift improve lifetime system accuracy.
These CMOS are available in five output voltages, all of which are specified over the automotive temperature range of −40°C to +125°C.
**APPLICATIONS**
- .
- Auto battery monitors
- .
- Portable instrumentation
- .
- Process transmitters
- .
- Remote sensors
- .
- Medical instrumentation
### Features and Benefits
- .
- Max temperature coefficient TC of 5ppm/ºC B grade
- .
- Max temperature coefficient TC of 8 ppm/°C A grade
- .
- Initial output voltage error: ±0.1% maximum
- .
- Operating temperature range: −40°C to +125°C
- .
- Output current: +10 mA source/−3 mA sink
- .
- Low quiescent current:
100 μA maximum
- .
- Long term drift:
30 ppm initial 1 khr typical
- .
- Low dropout voltage:
250 mV at 2 mA
- .
- Output noise 0.1 Hz to 10 Hz:
35μVp-p at 5.0V typical
- .
- Qualified for automotive applications
