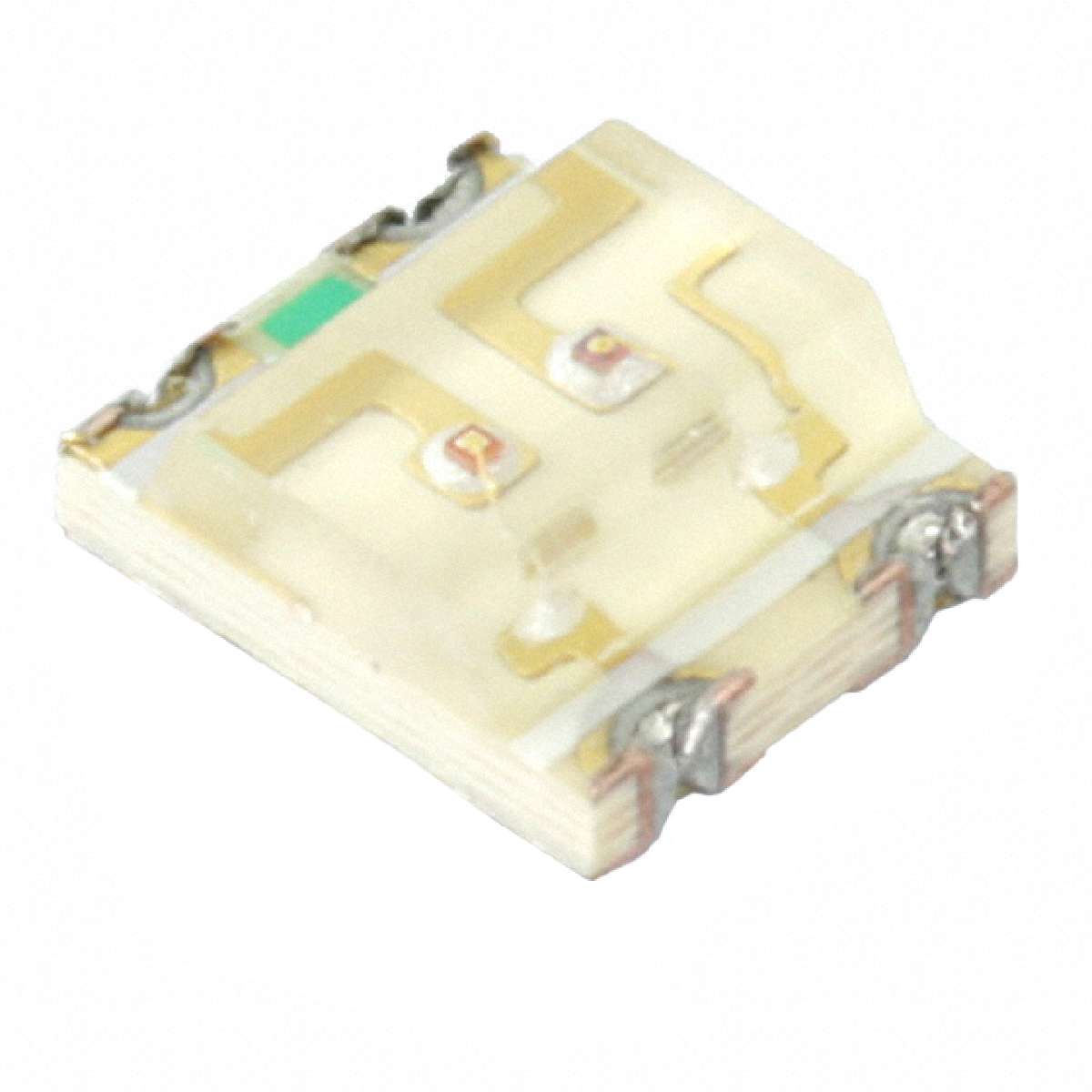

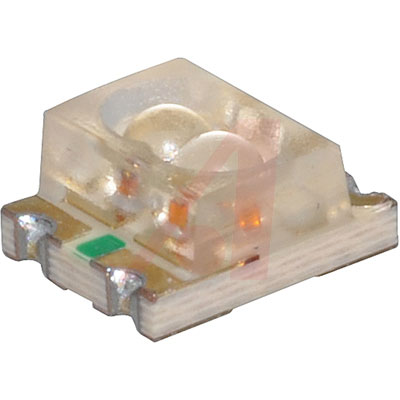

3 x 2.5 x 1.4 mm 100° 600/120 mcd 透明 表面贴装 LED
** SMT Chip 1109 3025 Package**
This range of surface mount SMT LED devices, from Kingbright, comes in the standard 1109 package. The SMT 1109 series of bi-Color LEDs offer low power consumption and a wide viewing angle. The SMT 1109 LEDs are ideal for applications such as backlights and indicators.
正向电压 2 V
波长 630 nm, 570 nm
视角 100°
峰值波长 650 nm, 574 nm
测试电流 20 mA
正向电流 20 mA
正向电压Max 2.5 V
正向电流Max 30 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 75 mW
安装方式 Surface Mount
引脚数 4
封装 SMD-4
长度 3 mm
宽度 2.5 mm
高度 1.40 mm
封装 SMD-4
颜色 Red, Yellow
外观颜色 Transparent
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
