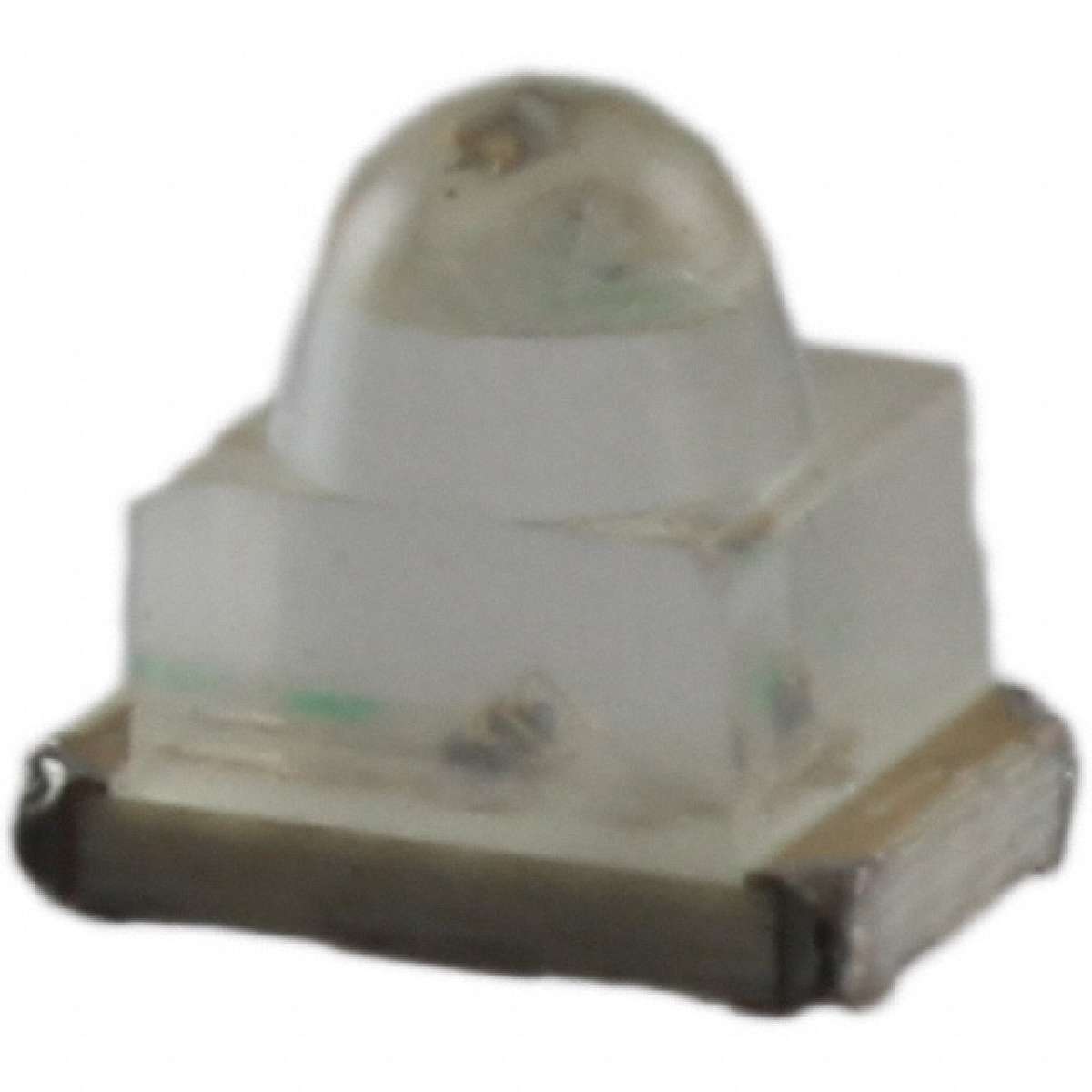

标准LED-SMD Grn/Yel 570/590nm 320/700mcd Water Clr
Green, Yellow 570nm Green, 590nm Yellow Indication - Discrete 2.1V Green, 2V Yellow 3-SMD, No Lead
得捷:
LED GRN/YELLOW CLEAR SMD R/A
贸泽:
标准LED-SMD Grn/Yel 570/590nm 320/700mcd Water Clr
艾睿:
LED Low-Power Bi-Color Green/SB. Yellow 574nm/590nm 2.1V/2V 3-Pin Chip LED T/R
Verical:
LED Low-Power Bi-Color Green/SB. Yellow 574nm/590nm 2.1V/2V 3-Pin Chip LED T/R
正向电压 2.5 V
波长 570nm Green,590nm Yellow
视角 15°
峰值波长 574nm, 590nm
耗散功率 75 W
测试电流 20 mA
正向电流 30 mA
正向电压Max 2.5 V
正向电流Max 30 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 75 mW
引脚数 3
封装 SMD-3
长度 3 mm
宽度 2.8 mm
高度 2.00 mm
封装 SMD-3
颜色 Green, Yellow
外观颜色 Transparent
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
