ADM800MARNZ-REEL

监控电路 5V CMOS PROCESS I.C.

Product Details

The ADM691A/ADM693A/ADM800L/ADM800M family of supervisory circuits offers complete single chip solutions for power supply monitoring and battery control functions in microprocessor systems. These functions include mP reset, backup-battery switchover, watchdog timer, CMOS RAM write protection, and power-failure warning. The family of products provides an upgrade for the MAX691A/93A/800M family of products.

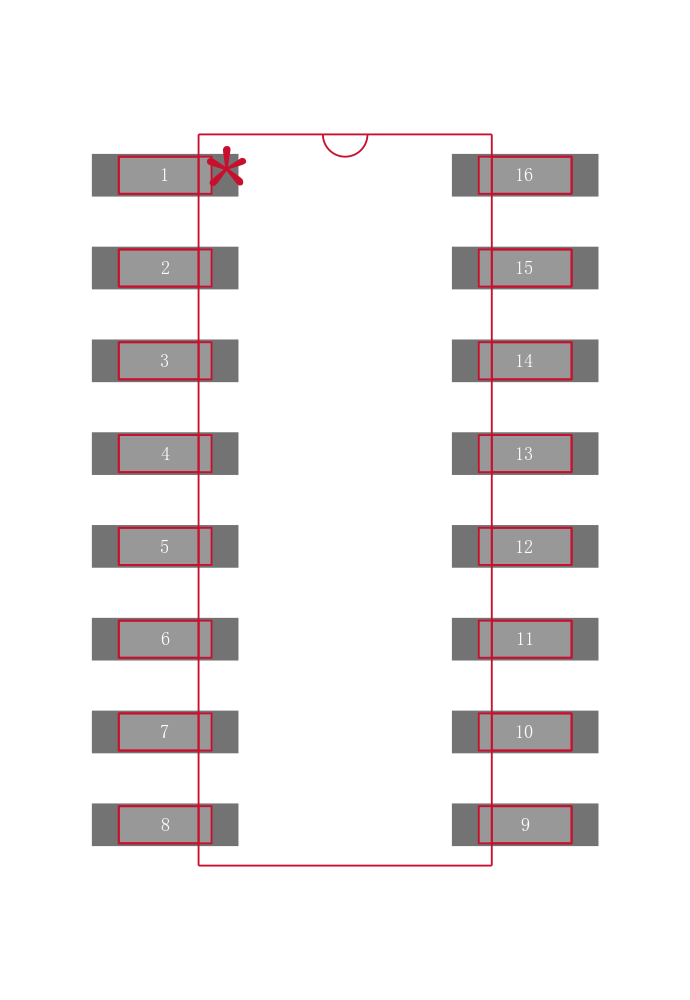

All parts are available in 16-pin DIP and SO packages. The ADM691A is also available in a space-saving TSSOP package. The following functionality is provided:

.

Power-on reset output during power-up, power-down and brownout conditions. The circuitry remains operational with VCC as low as 1 V.

.

Battery backup switching for CMOS RAM, CMOS micro-processor or other low power logic.

.

A reset pulse if the optional watchdog timer has not been toggled within a specified time.

.

A 1.25 V threshold detector for power fail warning, low battery detection, or to monitor a power supply other than +5 V.

### Features and Benefits

.

Low Power Consumption

.

Precision Voltage Monitor

.

±2% Tolerance on ADM800L/M

.

Reset Time Delay—200 ms, or Adjustable

.

1 µA Standby Current

.

Automatic Battery Backup Power Switching

.

Fast Onboard Gating of Chip Enable Signals

.

Also Available in TSSOP Package ADM691A
