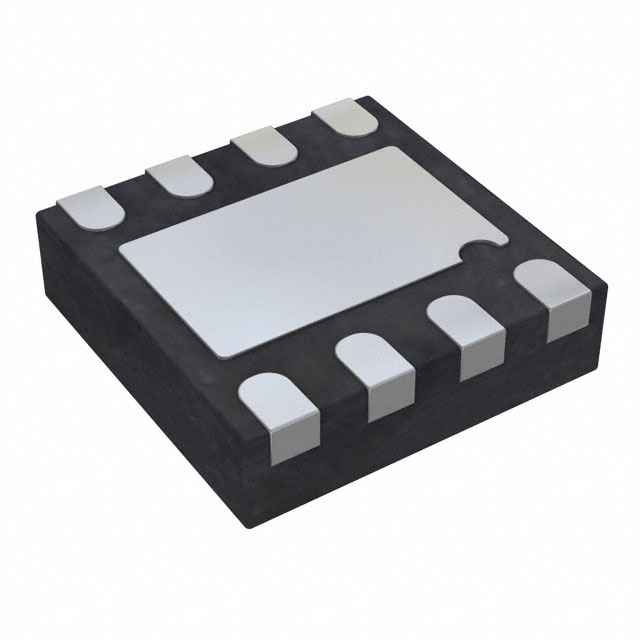

Standard Regulator Pos 1.8V 0.6A 8Pin LFCSP EP T/R
PMIC - 稳压器 - 线性 正 固定 1 输出 600mA 8-LFCSP-WD(3x3)
得捷:
IC REG LINEAR 1.8V 600MA 8LFCSP
立创商城:
ADM7154ACPZ-1.8-R7
艾睿:
Don&s;t let unpredictable voltage levels ruin your circuit! Use this standard ADM7154ACPZ-1.8-R7 linear regulator from Analog Devices to control your voltage levels! Its typical dropout voltage at current is 0.08@400mA|0.12@600mA V. It has an overall accuracy of ±0.5 %. This voltage regulation device&s;s single output can produce a current up to 0.6 A. Supply your circuit with sufficient power by implementing this, which requires a minimum input voltage of 2.3 V that does not exceed 5.5 V. With a fixed output that has a voltage of 1.8 V, this is power management at its best. By operating at a load regulation of 1.6%/A and line regulation of 0.02%/V you can provide a constant voltage at your output. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. Its polarity is positive. The maximum dropout voltage is 0.13@400mA|0.21@600mA V.
Verical:
LDO Regulator Pos 1.8V 0.6A 8-Pin LFCSP EP T/R
输出接口数 1
输出电压 1.8 V
输出电流 600 mA
跌落电压 0.12V @600mA,0.08V @400mA
输入电压Max 5.5 V
输入电压Min 2.3 V
输出电压Min 1.8 V
输出电流Max 0.6 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±0.5 %
输入电压 5.5 V
安装方式 Surface Mount
引脚数 8
封装 WFDFN-8
封装 WFDFN-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Aerospace and Defense, Radar
RoHS标准 RoHS Compliant
含铅标准 Lead Free
