微处理器监控电路 Microprocessor Supervisory Circuits
By using this microprocessor supervisory circuit from Analog Devices you won"t have to worry if something happens to your main processor. This device has a maximum power dissipation of 700 mW. Its maximum power dissipation is 700 mW. In order to ensure parts aren"t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This part has an operating temperature range of -40 °C to 85 °C. It has a typical reset threshold voltage of 4.65 V, with a minimum of 4.5 V and a maximum of 4.75 V. This device has a minimum operating supply voltage of 0 V and a maximum of 5.5 V.
电源电压DC 5.50V max
供电电流 0.1 mA
耗散功率 0.7 W
阈值电压 4.65 V
复位电压Min 4.5 V
复位电压Max 4.75 V
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 700 mW
电源电压Max 5.5 V
电源电压Min 4.75 V
安装方式 Surface Mount
引脚数 16

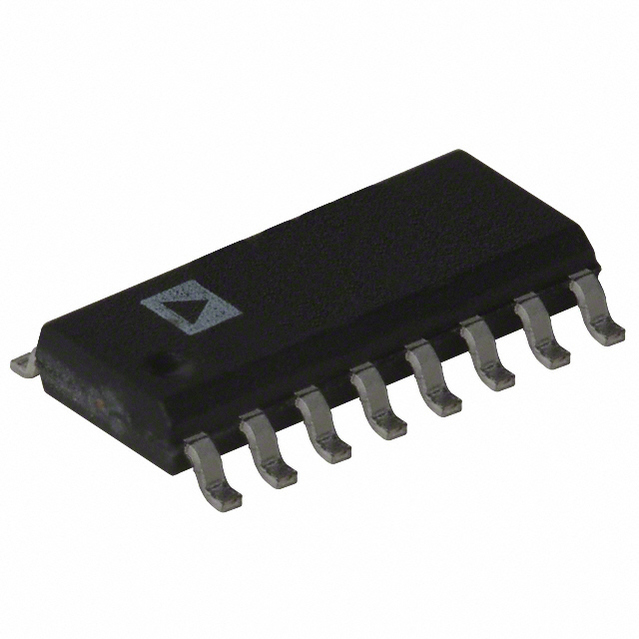

封装 SOIC-16
高度 1.5 mm
封装 SOIC-16
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 Non-Compliant
含铅标准 Contains Lead
军工级 No
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ADM691AARN ADI 亚德诺 | 当前型号 | 当前型号 |
ADM691AARNZ 亚德诺 | 类似代替 | ADM691AARN和ADM691AARNZ的区别 |
MAX691AESE+ 美信 | 功能相似 | ADM691AARN和MAX691AESE+的区别 |
MAX691ACSE 美信 | 功能相似 | ADM691AARN和MAX691ACSE的区别 |
