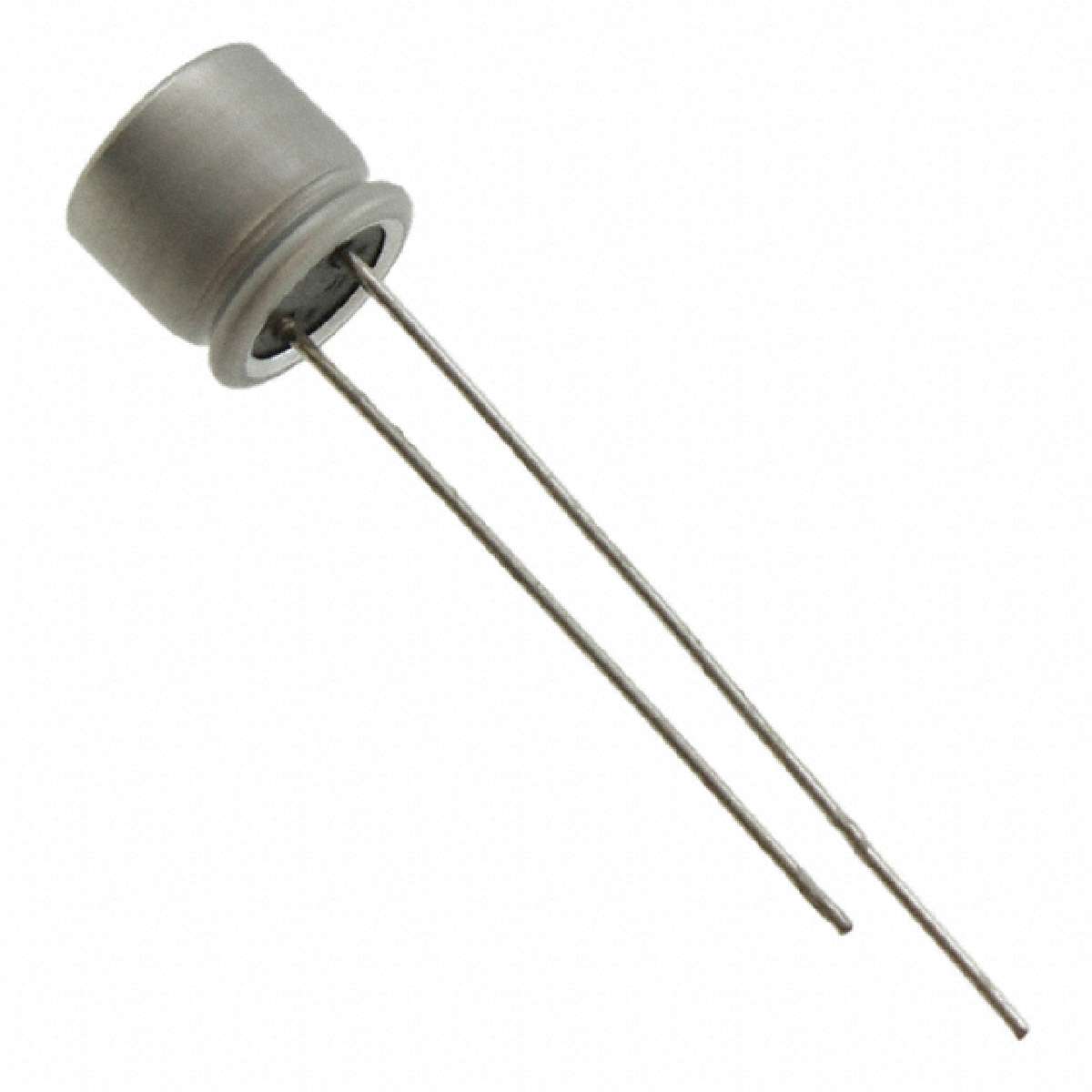

Cap Aluminum Polymer 820uF 16VDC 20% 10 X 11.5mm Radial 5mm 0.012Ω 5400mA 5000H 105℃ Bulk
Cap Aluminum Polymer 820uF 16VDC 20% 10 X 11.5mm Radial 5mm 0.012 Ohm 5400mA 5000h 105°C Bulk
得捷:
CAP ALUM POLY 820UF 20% 16V T/H
艾睿:
Add United Chemi-con&s;s APSG160ELL821MJB5S conductive polymer aluminum solid capacitors within your electronic circuit in order to keep sensitive components safe from the damaging effects of voltage spikes.
Verical:
Cap Aluminum Polymer 820uF 16VDC 20% 10 X 11.5mm Radial 5mm 0.012 Ohm 5400mA 5000h 105C Bulk
MASTER:
Cap Aluminum Polymer 820uF 16VDC 20% 10 X 11.5mm Radial 5mm 0.012 Ohm 5400mA 20000h 105°C Bulk
Online Components:
Cap Aluminum Polymer 820uF 16VDC 20% 10 X 11.5mm Radial 5mm 0.012 Ohm 5400mA 5000h 105°C Bulk
Electro Sonic:
Cap Aluminum Polymer 820uF 16VDC 20% 10 X 11.5mm Radial 5mm 0.012 Ohm 5400mA 20000h 105°C Bulk
电容 820 µF
等效串联电阻ESR 12 mΩ
容差 ±20 %
纹波电流 5400 mA
纹波电流低频 5.4A @100kHz
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压 16 V
安装方式 Through Hole
引脚数 2
封装 Radial, CAN
引脚间距 5 mm
高度 11.5 mm
直径 10 mm
封装 Radial, CAN
引脚间距 5 mm
工作温度 -55℃ ~ 105℃
产品生命周期 Active
包装方式 Bulk
寿命（小时） 5000 h
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8532220020
