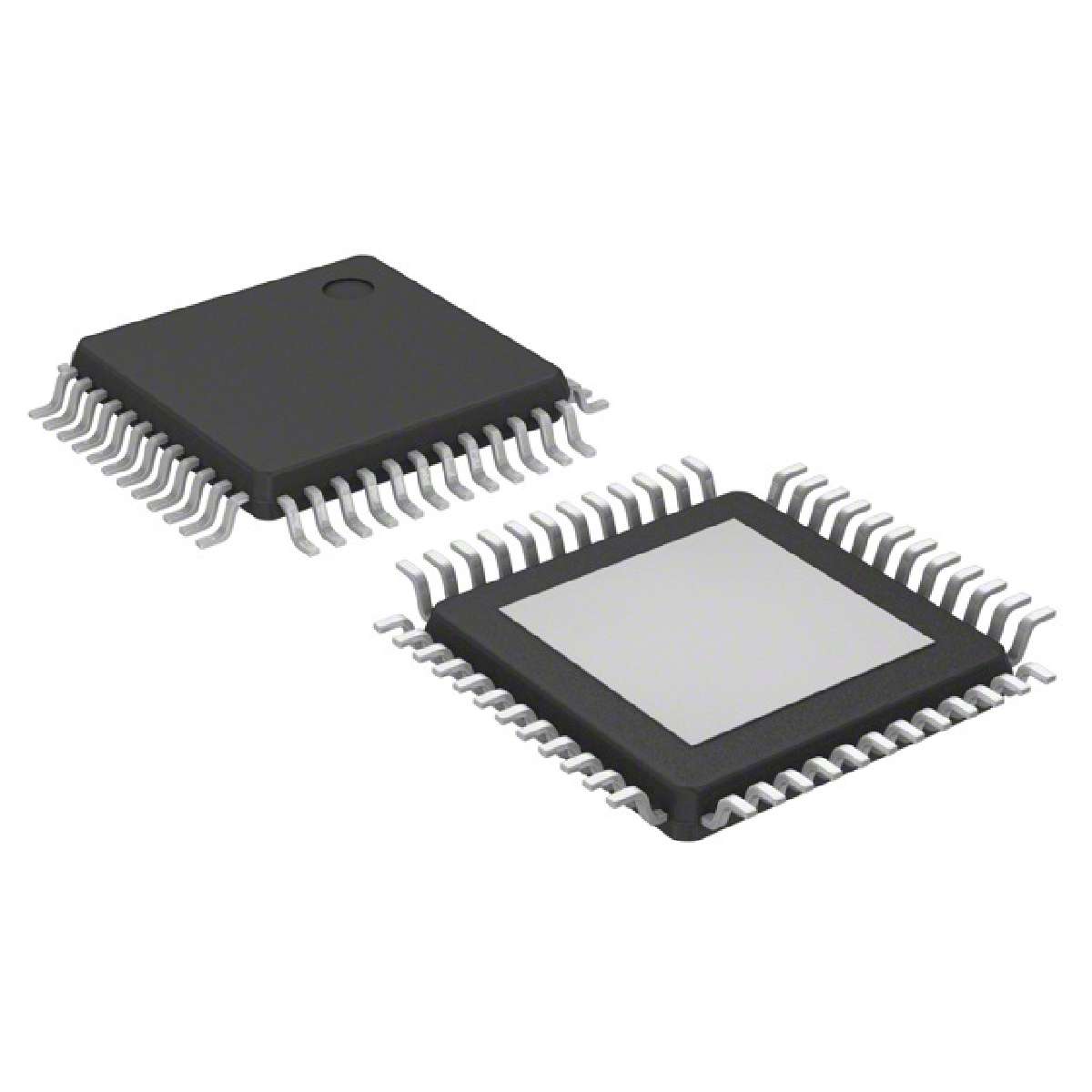

ALLEGRO MICROSYSTEMS A3931KJP-T 芯片, 无刷直流电机BLDC驱动器, 三相
The is a 3-phase pre-positioning brushless DC BLDC motor Controller for use with N-channel external power MOSFETs. A key automotive requirement is functionality over a wide input supply range. Unique charge pump regulator provides adequate gate drive for battery voltages down to 7V and allows the device to operate with a reduced gate drive at battery voltages down to 5.5V. Power dissipation in the charge pump is minimized by switching from a voltage doubling mode at low supply voltage to a dropout mode at the nominal running voltage of 14V. A bootstrap capacitor is used to provide the above-battery supply voltage required for N-channel MOSFETs. An internal charge pump for the high-side drive allows for DC operation. Internal fixed-frequency PWM current control circuitry can be used to regulate the maximum load current. The peak load current limit is set by the selection of an input reference voltage and external sensing resistor.
电源电压DC 5.50V min
输出接口数 12
输出电压 50 V
输出电流 1 mA
针脚数 48
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 5.5V ~ 50V
电源电压Max 50 V
电源电压Min 5.5 V
安装方式 Surface Mount
引脚数 48
封装 LQFP-48
封装 LQFP-48
工作温度 -40℃ ~ 150℃
产品生命周期 Obsolete
包装方式 Tray
制造应用 电机驱动与控制, Automotive, Motor Drive & Control, 车用, 汽车级
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
A3931KJP-T Allegro MicroSystems 急速微电子 | 当前型号 | 当前型号 |
A3930KJP-T 急速微电子 | 完全替代 | A3931KJP-T和A3930KJP-T的区别 |
A3930KJPTR-T 急速微电子 | 类似代替 | A3931KJP-T和A3930KJPTR-T的区别 |
A3931KJPTR-T 急速微电子 | 类似代替 | A3931KJP-T和A3931KJPTR-T的区别 |
