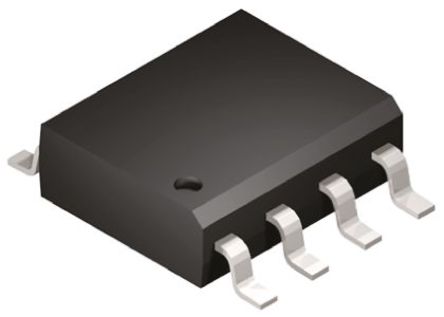

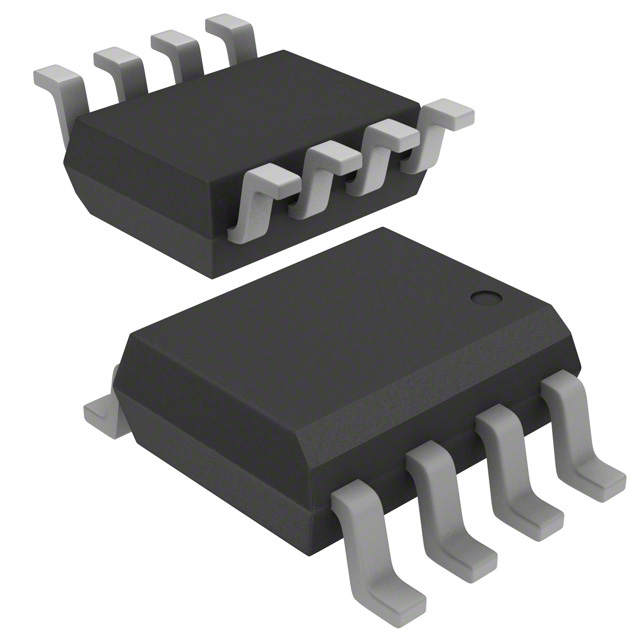

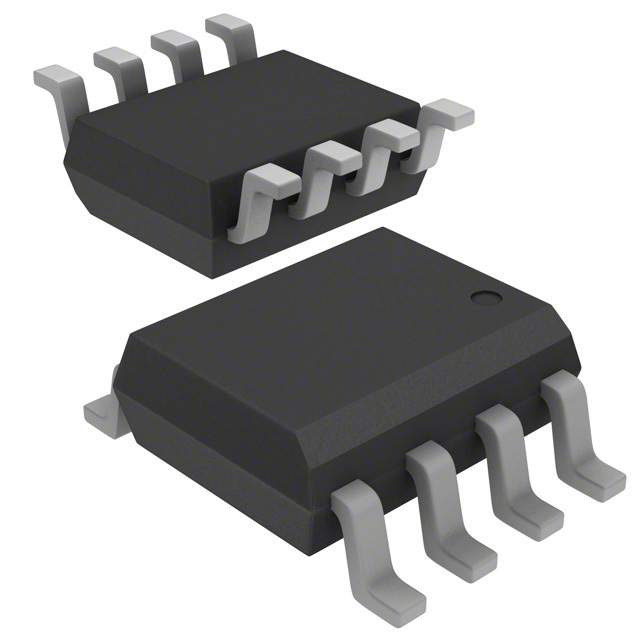

ADR4540ARZ

ANALOG DEVICES  ADR4540ARZ  电压基准, 超低噪, 高精准, 系列 - 固定, ADR4540系列, 4.096V, NSOIC-8

参考电压，3.0V 至 4.5V，Analog Devices

得捷:
IC VREF SERIES 0.04% 8SOIC

立创商城:
串联 10mA

欧时:
Analog Devices ADR4540ARZ Fixed 4.096V 电压参考, 4.096 V输出, ±0.04 %精确度, 10mA最大输出, 8引脚

e络盟:
电压基准, 超低噪, 高精准, 系列 - 固定, ADR4540系列, 4.096V, NSOIC-8

艾睿:
V-Ref Precision 4.096V 10mA 8-Pin SOIC N Tube

安富利:
The ADR4540 devices are high precision, low power, low noise voltage references featuring ±0.02% maximum initial error, excellent temperature stability, and low output noise.This family of voltage references uses an innovative core topology to achieve high accuracy while offering industry-leading temperature stability and noise performance. The low, thermally induced output voltage hysteresis and low long-term output voltage drift of the devices also improve system accuracy over time and temperature variations.A maximum operating current of 950 μA and a maximum low dropout voltage of 300 mV allow the devices to function very well in portable equipment.The ADR4540 series of references is provided in an 8-lead SOIC package and is available in a wide range of output voltages, all of which are specified over the extended industrial temperature range of −40°C to +125°C.

Chip1Stop:
V-Ref Precision 4.096V 10mA 8-Pin SOIC N Tube

Verical:
V-Ref Precision 4.096V 10mA 8-Pin SOIC N Tube

Newark:
# ANALOG DEVICES  ADR4540ARZ  Voltage Reference, Ultralow Noise, High Accuracy, Series - Fixed, ADR4540 Series, 4.096V, NSOIC-8

DeviceMart:
IC VREF SERIES PREC 4.096V 8SOIC
