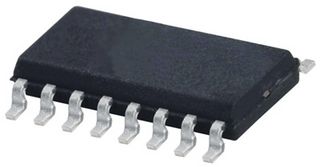

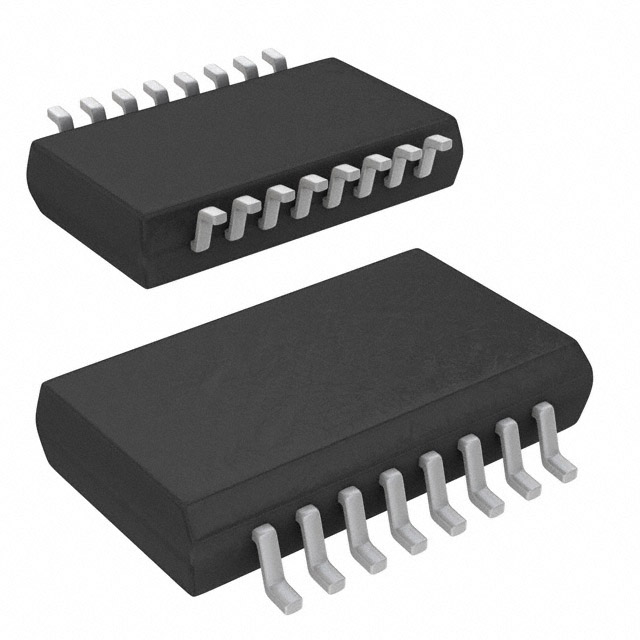

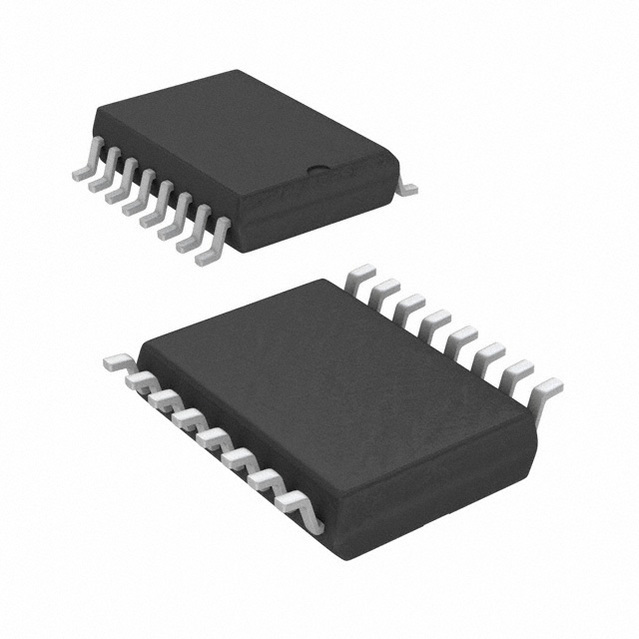

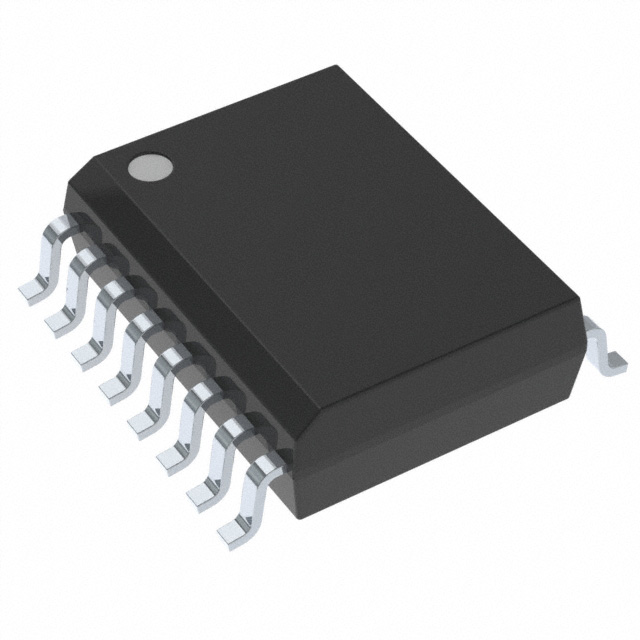

ANALOG DEVICES ADM8696ARWZ 微控制器监控器电路, 高电平有效, 低电平有效复位, 3V-5.5V输入, SOIC-16
Keep your circuit secure if your main processor goes out by using this microprocessor supervisory circuit from Analog Devices. This device has a maximum power dissipation of 600 mW. Its maximum power dissipation is 600 mW. In order to ensure parts aren"t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This device has a minimum operating supply voltage of 3 V and a maximum of 5.5 V. This part has a minimum operating temperature of -40 °C and a maximum of 85 °C.
电源电压DC 5.50V max
供电电流 0.2 mA

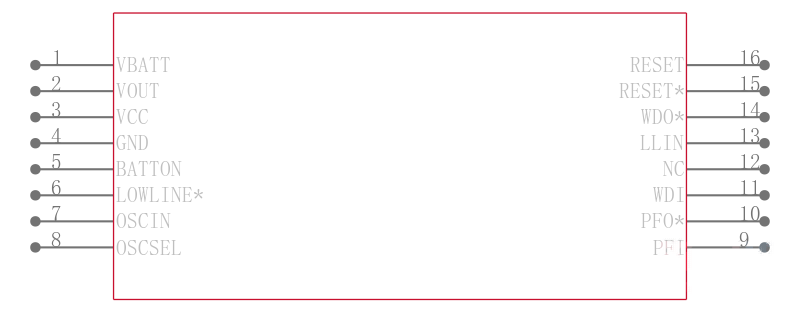

针脚数 16
耗散功率 0.6 W
阈值电压 1.3 V
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 600 mW
电源电压Max 5.5 V
电源电压Min 3 V
安装方式 Surface Mount
引脚数 16

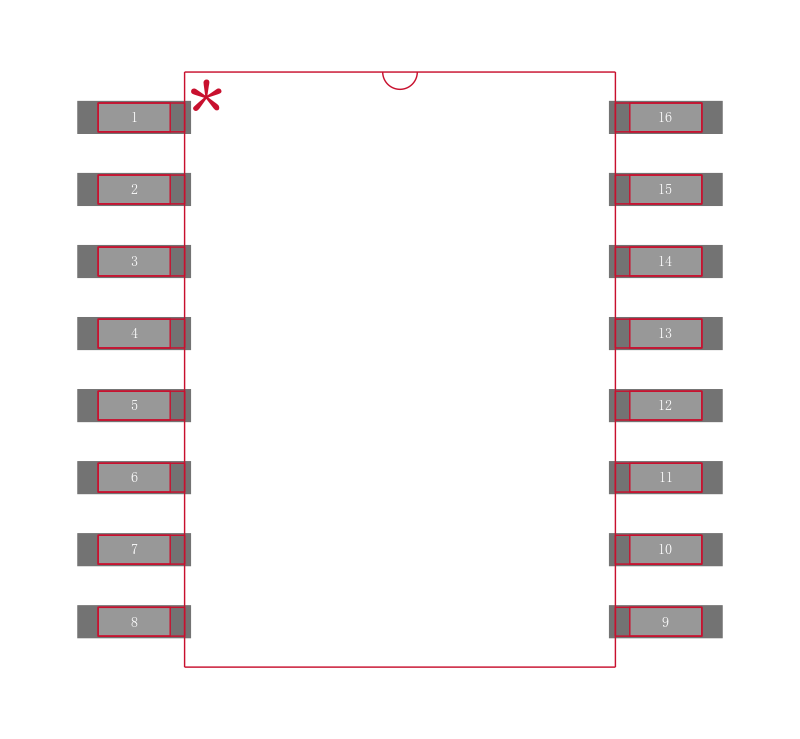

封装 SOIC-16

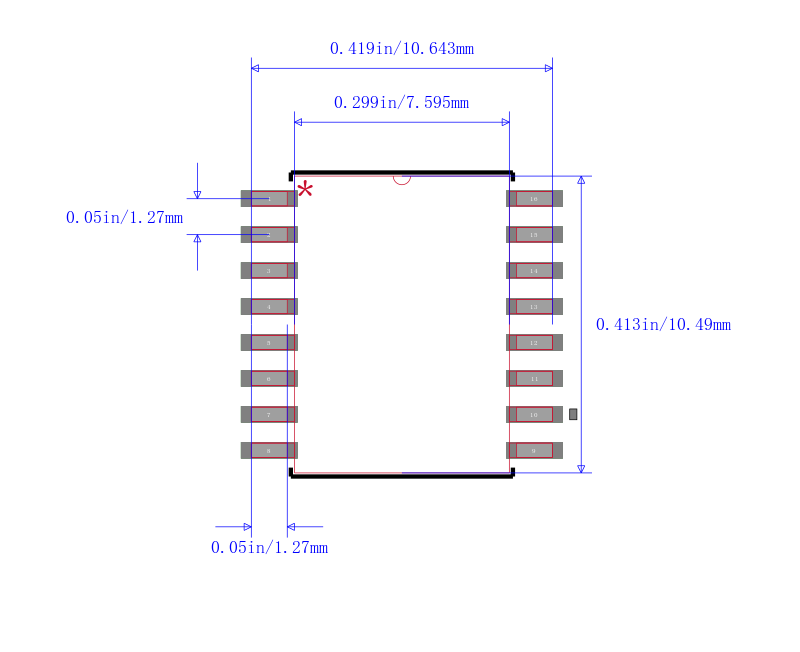

宽度 7.6 mm
高度 2.35 mm
封装 SOIC-16
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 No
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
ADM8696ARWZ ADI 亚德诺 | 当前型号 | 当前型号 |
ADM8696ANZ 亚德诺 | 完全替代 | ADM8696ARWZ和ADM8696ANZ的区别 |
ADM8696ARW 亚德诺 | 类似代替 | ADM8696ARWZ和ADM8696ARW的区别 |
ADM8696ARWZ-REEL 亚德诺 | 类似代替 | ADM8696ARWZ和ADM8696ARWZ-REEL的区别 |
