ADP5070AREZ参数规格_中文资料_数据手册PDF

ADP5070AREZ概述

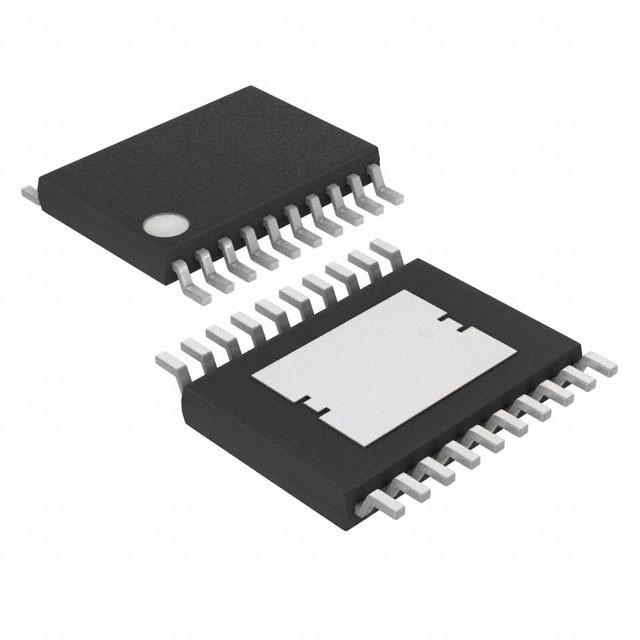

ANALOG DEVICES ADP5070AREZ 芯片, 直流/直流转换器, 升压/降压, 2.4MHZ, TSSOP-20

升压，SEPIC 开关稳压器 IC 正和负（双轨）可调式 0.8V，1.6V 2 输出 600mA，1A 20-TSSOP（0.173"，4.40mm 宽）裸露焊盘

得捷:
IC REG BST SEPIC ADJ DL 20TSSOP

贸泽:
Switching Voltage Regulators uPMU V+/V- sw reg for bipolarADC/DAC/AMP

e络盟:
直流/直流开关稳压器, 降压, 2 输出, 至15 V输入, 39 V/1 A输出, 2.4 MHz, TSSOP-20

艾睿:
Conv DC-DC 2.85V to 15V Non-Inv/Inv/Step Up/Step Down Single-Out 2.85V to 39V/-0.5V to -36.15V 20-Pin TSSOP EP Tube

安富利:
Conv DC-DC Dual Step Down/Step Up/Inv 2.85V to 15V 20-Pin TSSOP Tube

Chip1Stop:
Conv DC-DC 2.85V to 15V Non-Inv/Inv/Step Up/Step Down Single-Out 2.85V to 39V 20-Pin TSSOP EP Tube

Verical:
Conv DC-DC 2.85V to 15V Non-Inv/Inv/Step Up/Step Down Dual-Out 2.85V to 39V/-0.5V to -36.15V 20-Pin TSSOP EP Tube

Newark:
# ANALOG DEVICES ADP5070AREZ DC/DC Switching Regulator, Buck, 2 Output, Boost, up to 15 V in, 39 V/1 A out, 2.4 MHz, TSSOP-20

ADP5070AREZ中文资料参数规格

技术参数

输出接口数 2

输出电压 2.85V ~ 39V

输出电流 600mA, 1A

针脚数 20

开关频率 2.4 MHz

输入电压Max 15 V

输入电压Min 2.85 V

工作温度Max 125 ℃

工作温度Min -40 ℃

电源电压Min 2.85 V

输入电压 2.85V ~ 15V

封装参数

安装方式 Surface Mount

引脚数 20

封装 TSSOP-20

外形尺寸

封装 TSSOP-20

物理参数

工作温度 -40℃ ~ 125℃ TJ

其他

产品生命周期 Active

包装方式 Tube

制造应用 , Sport Watch, Healthcare, Aerospace and Defense, Medical Isolation and Patient Safety, NiBP based on ECG and PPG, Respiration Measurement, Health, Wellness and Fitness, Wearable Health Monitoring, SpO2, Body Composition Measurement, Motion Sensing/Fall Detecti, Power Management, Clinical Monitoring

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC版本 2015/12/17

数据手册

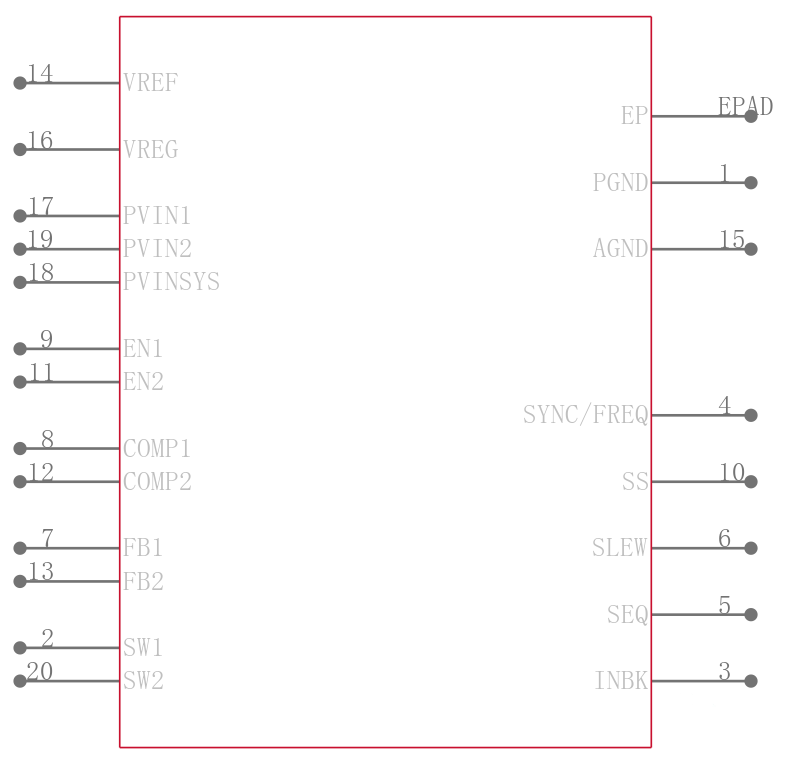

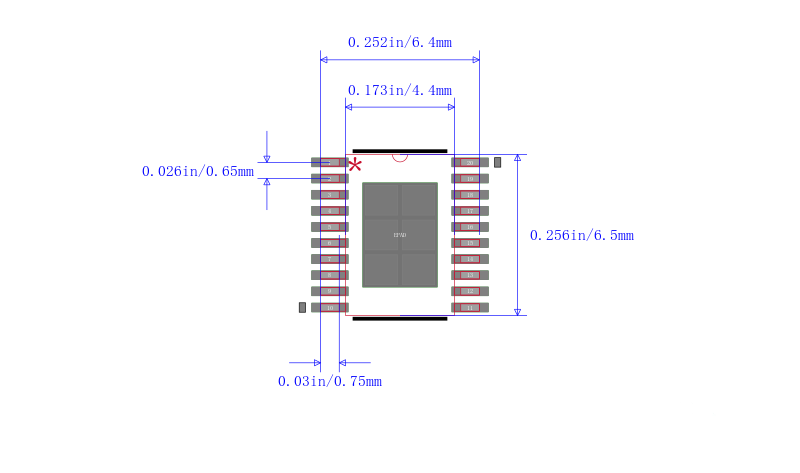

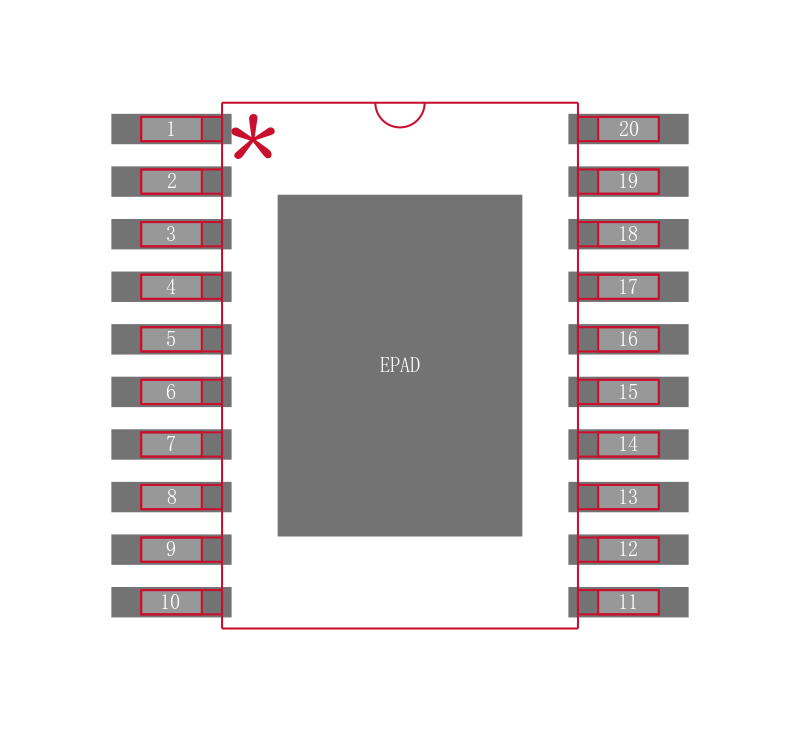

ADP5070AREZ引脚图与封装图
