低压差稳压器 600mA Ultra-Low-Noise High-PSRR LDO
PMIC - 稳压器 - 线性 正 固定 1 输出 600mA 8-SOIC-EP
得捷:
ADM7154 - 600MA ULTRA-LOW-NOISE
贸泽:
低压差稳压器 600mA Ultra-Low-Noise High-PSRR LDO
艾睿:
This standard ADM7154ARDZ-1.2-R7 linear regulator from Analog Devices acts like a variable resistor to maintain a steady voltage level. It has an overall accuracy of ±5 %. Its typical dropout voltage at current is 0.08@400mA|0.12@600mA V. This voltage regulation device&s;s single output can produce a current up to 0.6 A. With a small input voltage of 2.3 V and a max of 5.5 V, this will supply sufficient power to your circuit. With a fixed output that has a voltage of 1.2 V, this is power management at its best. Maintain a constant voltage level with a load regulation of 0.3%/ATyp and line regulation of 0.02%/V. Its polarity is positive. The maximum dropout voltage is 0.13@400mA|0.21@600mA V. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C.
安富利:
LDO Regulator Pos 1.2V 0.6A 8-Pin SOIC N EP T/R
Verical:
LDO Regulator Pos 1.2V 0.6A 8-Pin SOIC N EP T/R
输出接口数 1
输出电压 1.2 V
输出电流 600 mA
静态电流 4 mA
跌落电压 0.08V @400mA,0.12V @600mA
输入电压Max 5.5 V
输入电压Min 2.3 V
输出电压Min 1.2 V
输出电流Max 0.6 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±0.5 %
输入电压 2.3V ~ 5.5V
安装方式 Surface Mount
引脚数 8

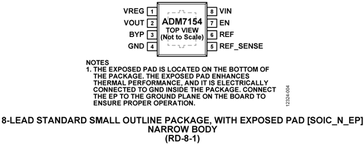

封装 SOIC-8
高度 1.65 mm
封装 SOIC-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Aerospace and Defense, Radar
RoHS标准 RoHS Compliant
含铅标准 Lead Free
