ADR4525BRZ-R7

超低噪声，高精度 Ultralow Noise, High Accuracy

Product Details

The ADR45xx series of devices are high precision, low power, low noise voltage references, featuring ± 0.02% maximum initial error, excellent temperature stability and low output noise.

This family of voltage references employs a new core topology for high accuracy, while offering industry-leading temperature stability and noise performance. The devices’ low thermally induced output voltage hysteresis and low long-term output voltage drift also improve system accuracy over time and temperature variations.

A maximum operating current of 950 μA allows the device to be used in portable equipment.

ADR45xx series references are available in a wide range of output voltages, in an SOIC package, all of which are specified over the extended industrial temperature range of -40°C to +125 °C.

**APPLICATIONS**

.

Precision data acquisition systems

.

High-resolution data converters

.

High-precision measurement devices

.

Industrial instrumentation

.

Medical devices

.

Automotive battery monitoring

### Features and Benefits

.

Maximum temperature coefficient TC:

2 ppm / °C

.

Output noise 0.1 – 10 Hz:

< 1.25 μVp-p @ 2.5 VOUT typ.

.

Initial output voltage error:

± 0.02% maximum

.

Input voltage range:

3 to 15 V

.

Operating temperature:

-40°C – +125 °C

.

Output current:

+10 mA source / -10 mA sink

.

Low quiescent current:

950 μA max

.

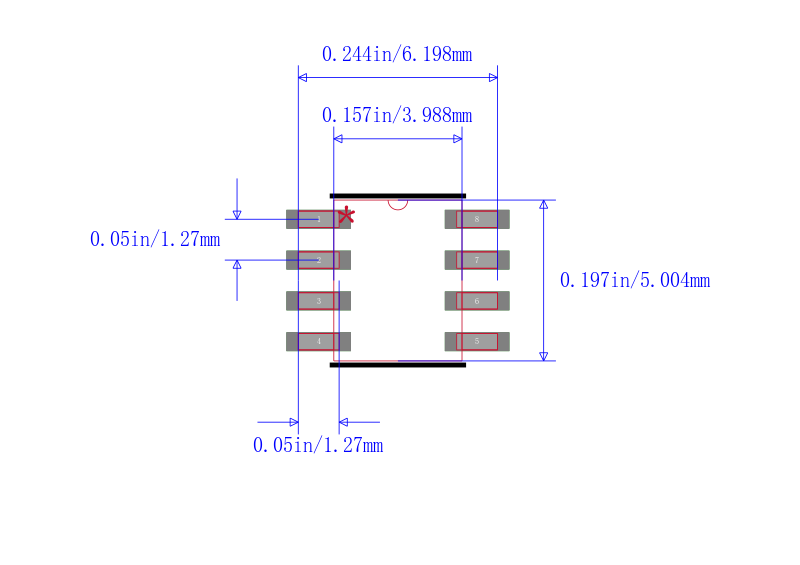

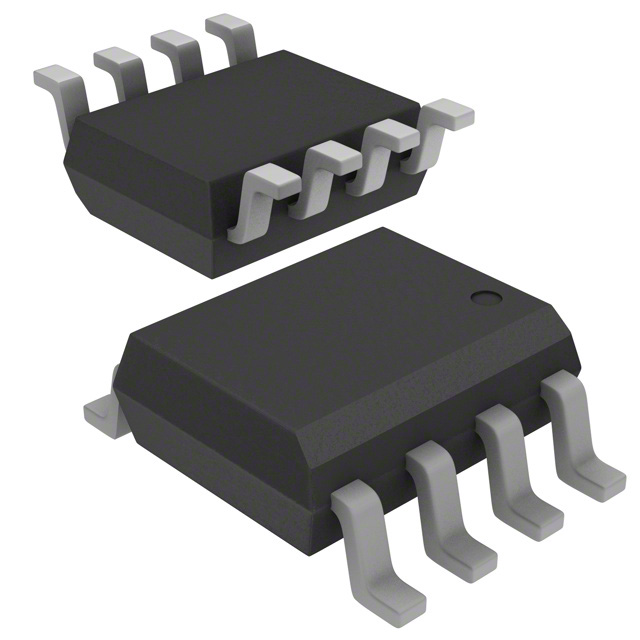

SOIC-8 package
