超低噪声, LDO XFET基准电压与电流吸收和源 Ultralow Noise, LDO XFET Voltage References with Current Sink and Source
Even in the event of large power supply variations, this voltage reference power management device from Analog Devices can produce and maintain a precise DC voltage. By working with a maximum input voltage of 20 V, this is the best way to control the power in your circuit. It has an initial accuracy of 0.13%. With an output that has a voltage of 5 V, this is power management at its best. This voltage reference circuit supports series topology. Maintain a constant voltage level with a load regulation of 50ppm/mA and line regulation of 20ppm/V. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This voltage reference circuit has an operating temperature range of -40 °C to 125 °C. It runs with a maximum temperature coefficient of 10ppm/°C.
容差 ±0.12 %
输入电压DC 18.0V max
输出电压 5 V
输出电流 10 mA
供电电流 3.75 mA
通道数 1
输入电压Max 20 V
输出电压Max 5 V
输出电压Min 5 V
输出电流Max 10 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±0.12 %
输入电压 5.5V ~ 18V
安装方式 Surface Mount

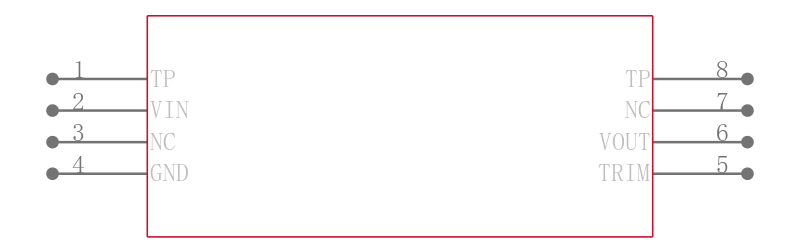

引脚数 8

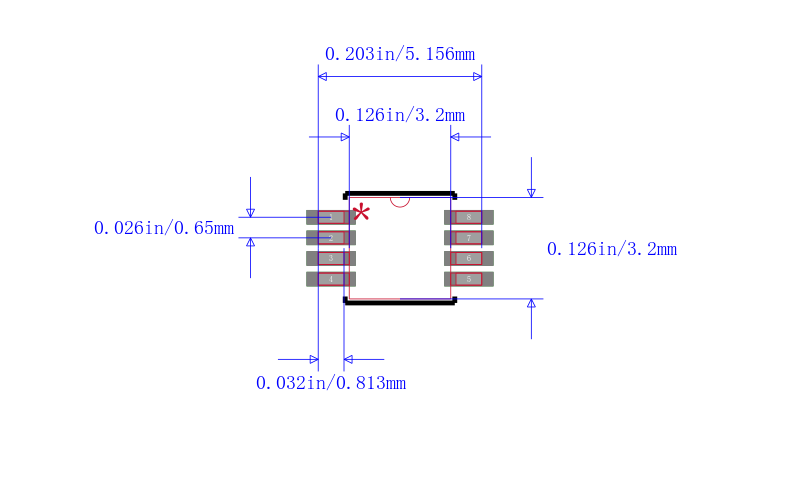

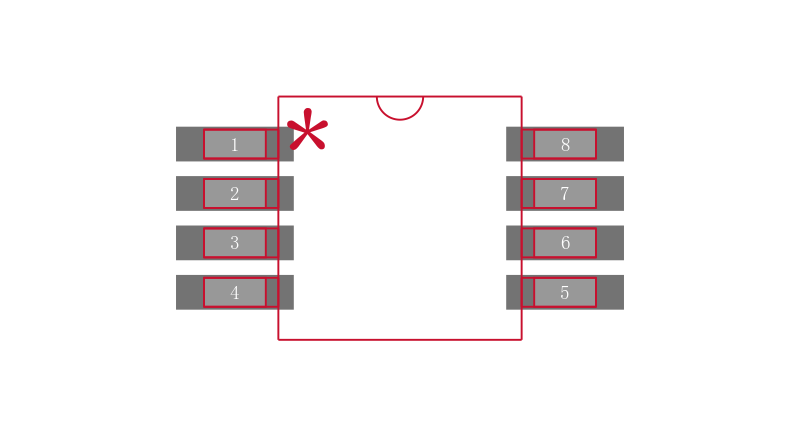

封装 MSOP-8
封装 MSOP-8
工作温度 -40℃ ~ 125℃ TA
温度系数 ±10 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ADR445ARMZ-REEL7 ADI 亚德诺 | 当前型号 | 当前型号 |
ADR445ARMZ 亚德诺 | 类似代替 | ADR445ARMZ-REEL7和ADR445ARMZ的区别 |
