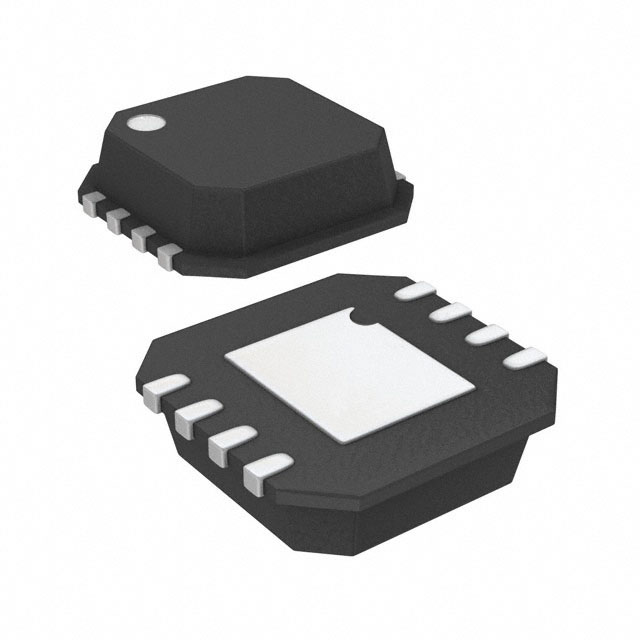

ANALOG DEVICES AD8099ACPZ-REEL7 运算放大器, 单路, 510 MHz, 1个放大器, 1.35 kV/µs, 5V 至 12V, LFCSP, 8 引脚
The is an ultralow distortion high speed Operational Amplifier for use with DAC buffers. The AD8099 features a new, highly linear, low noise input stage that increases the full power bandwidth FPBW at low gains with high slew rates. "s proprietary next generation XFCB process enables such high-performance amplifiers with relatively low power. The AD8099 features external compensation, which lets the user set the gain bandwidth product. External compensation allows gains from +2 to +10 with minimal trade-off in bandwidth. The AD8099 also features an extremely high slew rate of 1350V/µs, giving the designer flexibility to use the entire dynamic range without trading off bandwidth or distortion. The AD8099 settles to 0.1% in 18ns and recovers from overdrive in 50ns.
ESD sensitive device, electrostatic charges as high as 4000V readily accumulate on the human body and test equipment and can discharge without detection.
供电电流 15 mA
电路数 1
通道数 1
针脚数 8
共模抑制比 105 dB
输入电容 1.80 pF
带宽 510 MHz
转换速率 1.35 kV/μs
增益频宽积 3 GHz
输入阻抗 1.00 MΩ
输入补偿电压 100 µV
输入偏置电流 6 µA
工作温度Max 125 ℃
工作温度Min -40 ℃
3dB带宽 510 MHz
增益带宽 88 dB
共模抑制比Min 88 dB
电源电压 5V ~ 12V
电源电压Max 12 V
电源电压Min 5 V
安装方式 Surface Mount
引脚数 8
封装 LFCSP-8
长度 3 mm
宽度 3 mm
高度 0.84 mm
封装 LFCSP-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Signal Processing, Sensing & Instrumentation, 传感与仪器, 信号处理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 No
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
AD8099ACPZ-REEL7 ADI 亚德诺 | 当前型号 | 当前型号 |
AD8099ACP-REEL7 亚德诺 | 完全替代 | AD8099ACPZ-REEL7和AD8099ACP-REEL7的区别 |
AD8099ACPZ-REEL 亚德诺 | 类似代替 | AD8099ACPZ-REEL7和AD8099ACPZ-REEL的区别 |
AD8099ACPZ-R2 亚德诺 | 类似代替 | AD8099ACPZ-REEL7和AD8099ACPZ-R2的区别 |
