ANALOG DEVICES AD8005ARTZ-REEL7 运算放大器, 单路, 270 MHz, 1个放大器, 1.5 kV/µs, 5V, ± 5V, SOT-23, 5 引脚
The is an ultralow power high speed Current Feedback Amplifier for use with loop/remote power systems. This performance is achieved while consuming only 400µA of quiescent supply current. These features increase the operating time of high speed battery powered systems without reducing dynamic performance. The current feedback design results in gain flatness of 0.1dB to 30MHz while offering differential gain and phase errors of 0.11% and 0.4°. Harmonic distortion is low over a wide bandwidth with THDs of -63dBc at 1MHz and -50dBc at 10MHz.
- .
- High speed
- .
- Low distortion/noise
- .
- Good video specifications RL=1kR, G=+2
- .
- 400µA Power supply current 4mW on ±5 VS
输出电流 10mA @5V
供电电流 400 µA
电路数 1
通道数 1
针脚数 5
耗散功率 500 mW
共模抑制比 54 dB
输入电容 1.60 pF
带宽 270 MHz
转换速率 1.50 kV/μs
增益频宽积 225 MHz
输入阻抗 90.0 MΩ
输入补偿电压 5 mV
输入偏置电流 5 µA
工作温度Max 85 ℃
工作温度Min -40 ℃
3dB带宽 270 MHz
耗散功率Max 500 mW
共模抑制比Min 48 dB
电源电压 5V ~ 5V
电源电压Max 12 V
电源电压Min 4 V
安装方式 Surface Mount
引脚数 5

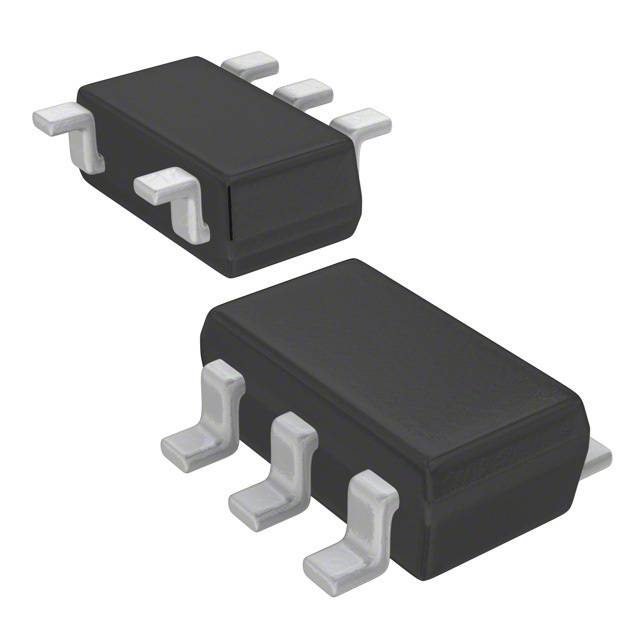

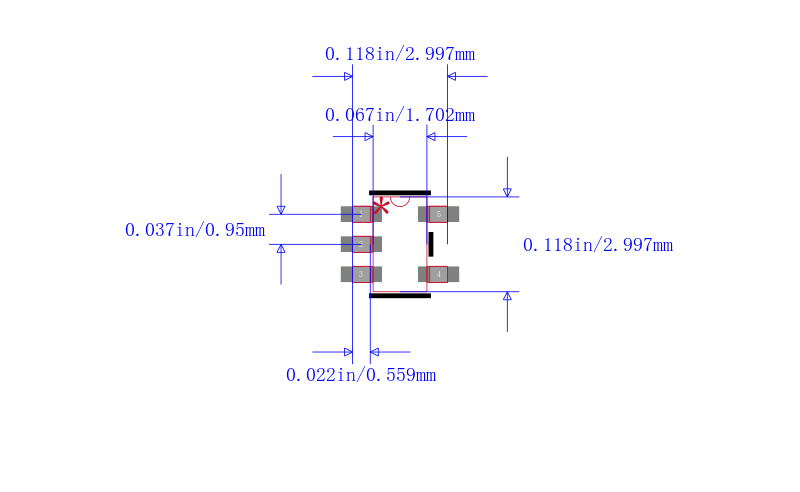

封装 SOT-23-5
长度 2.9 mm
宽度 1.6 mm
高度 1.15 mm
封装 SOT-23-5
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Signal Processing, 测试与测量, 医用, Medical, Communications & Networking, 电源管理, 便携式器材, 通信与网络, Power Management, Portable Devices, Test & Measurement, 信号处理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 No
REACH SVHC版本 2017/07/07
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
AD8005ARTZ-REEL7 ADI 亚德诺 | 当前型号 | 当前型号 |
AD8005ART-REEL7 亚德诺 | 完全替代 | AD8005ARTZ-REEL7和AD8005ART-REEL7的区别 |
AD8005ART-R2 亚德诺 | 完全替代 | AD8005ARTZ-REEL7和AD8005ART-R2的区别 |
AD8005ART-REEL 亚德诺 | 完全替代 | AD8005ARTZ-REEL7和AD8005ART-REEL的区别 |
