ADM7151ARDZ-04-R7

低压差稳压器 800mA ULN 1.5to5.1Vo Adj LDO

Product Details

The ADM7151 is a low dropout linear regulator that operates from 4.5 V to 16V and provides up to 800mA of output current. Using an advanced proprietary architecture, they provide high power supply rejection, low noise, and achieve excellent line and load transient response with a 10 μF ceramic output capacitor. The output voltage may be set to any voltage between 1.5V and 5.1V with two resistors.

The ADM7151 is available in 2 models that optimize power dissipation and PSRR performance as a function of input and output voltage.The ADM7151 regulator output noise is 1.0 μVrms 100Hz to 100KHz and 1.7nV/√Hz noise spectral density above 10KHz.

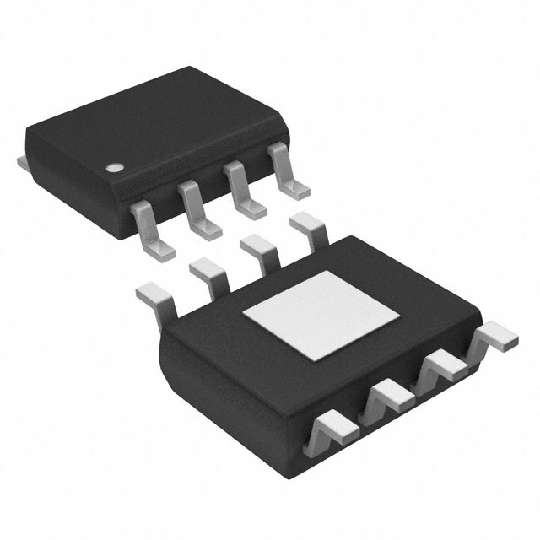

The ADM7151 is available in 8-lead, 3 mm × 3 mm LFCSP and 8-lead SOIC packages, making it not only a very compact solution, but also providing excellent thermal performance for applications requiring up to 800mA of output current in a small, low-profile footprint.

ADM7151 is an adjustable Vout device. For fixed Vout version of the ADM7151, see the ADM7150.

**Applications**

.

Regulation to noise sensitive applications: RF Mixers, PLL’s, VCO’s, and PLL’s with Integrated VCO’s

.

Clock distribution circuits

.

Ultrasound and other imaging applications

.

High speed RF transceivers

.

High speed, 16 bit+ ADCs

.

Communications and Infrastructure

### Features and Benefits

.

Input voltage range: 4.5V to 16V

.

Maximum output current: 800mA

.

Adjustable output from 1.5V to 5.1V

.

Low Noise:

1.0 μVRMS Total Integrated Noise from 100 Hz to 100 KHz

1.6 μVRMS Total Integrated Noise from 10 Hz to 100 KHz

.

Noise Spectral Density <1.7nV√Hz above 10 KHz

.

PSRR of >90 dB from 1 KHz to 100 KHz, >60dB @ 1 MHz, VOUT = 5V

.

Dropout voltage: 600 mV @ VOUT = 5 V/800 mA load

.

Initial accuracy: ±1%

.

Accuracy over line, load, and temperature: ±2%

.

Quiescent Current, IGND = 4.3 mA @ No Load

.

Low shutdown current: 0.1 μA

.

Stable with a 10 μF ceramic output capacitor

.

8-lead LFCSP package and SOIC package
