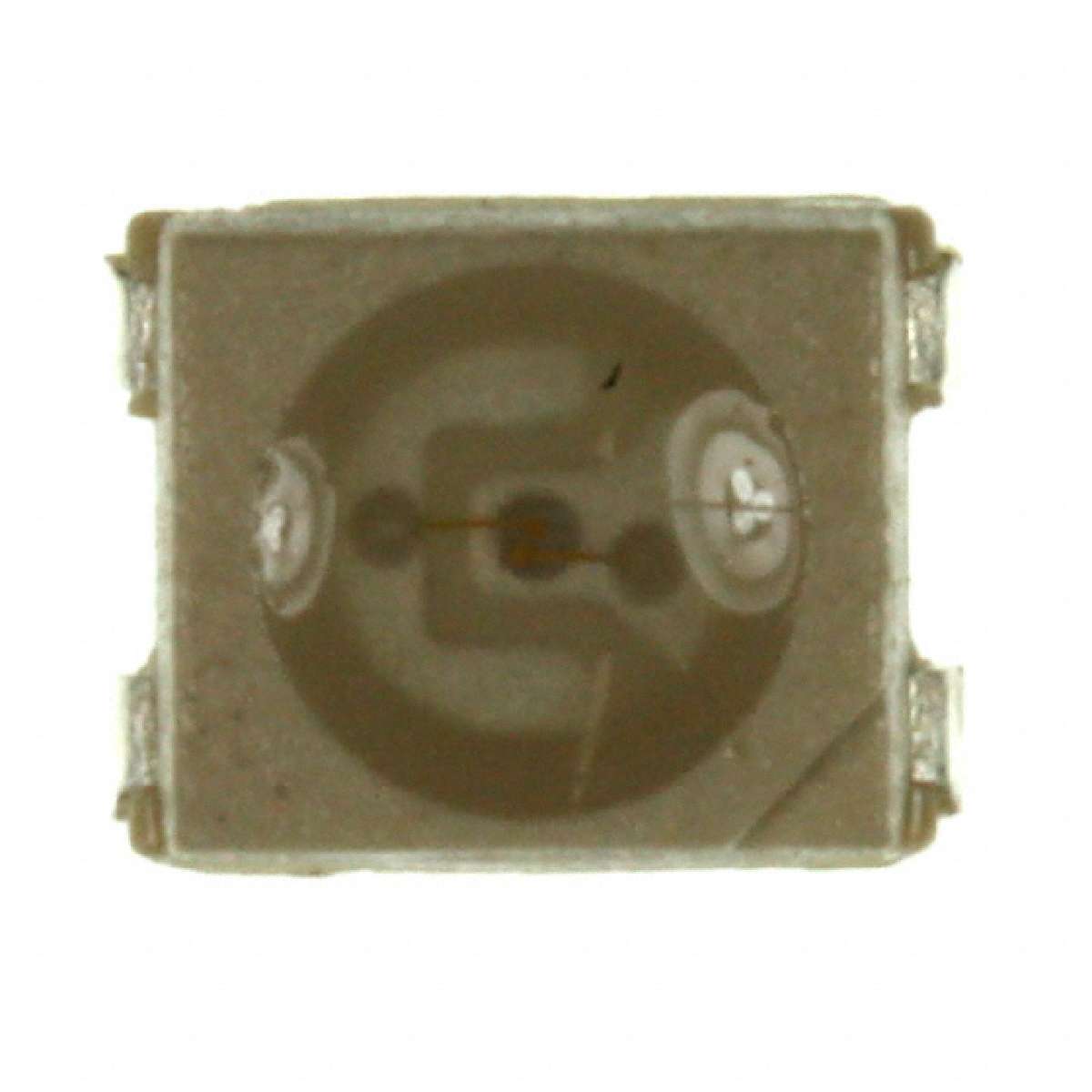

LED Uni-Color Blue 468nm 2Pin SMD T/R
Blue 470nm Indication - Discrete 3.3V 2-PLCC
得捷: LED BLUE CLEAR SMD
贸泽: Standard LEDs - SMD Blue 470nm Water Clear 200mcd
正向电压 3.3 V
波长 470 nm
发光强度 200 mcd
视角 120°
峰值波长 468 nm
测试电流 20 mA
正向电流 20 mA
工作温度Max 85 ℃
工作温度Min 40 ℃
安装方式 Surface Mount
封装 PLCC-2
长度 3.5 mm
宽度 2.8 mm
高度 1.9 mm
颜色 Blue
产品生命周期 Discontinued at Digi-Key
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
数据手册
