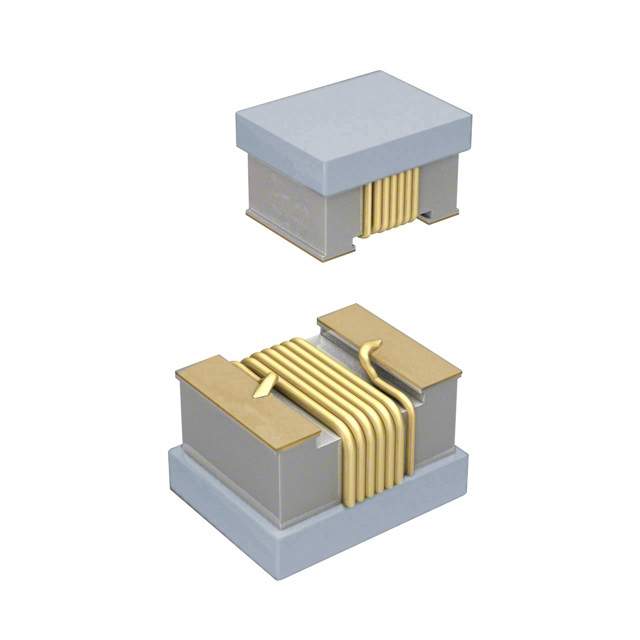

AISM-1210-1R8K-T

1210 1.8uH ±10% 350mA

1.8µH Unshielded Molded Inductor 350mA 900mOhm Max 1210 3225 Metric

得捷:
FIXED IND 1.8UH 350MA 900MOHM SM

立创商城:
1.8uH ±10%

艾睿:
Is space on a PCB a limiting factor for your electronic circuit design? Then use this chip AISM-1210-1R8K-T surface mount inductor from Abracon Corporation to save valuable space. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 85 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This SMD inductor has a maximum DC current of 350mA typ with a maximum resistance of 900m Ohm. It has a tolerance of 10%. This product is 3.5 mm long, 2.4 mm tall and 2.7 mm deep. Its test frequency is 7.96M Hz, while its minimum self-resonant frequency is 80M Hz. This device is made with wirewound technology. It has an inductance of 1.8u H.

Chip1Stop:
Ind Chip Molded Wirewound 1.8uH 10% 7.96MHz 30Q-Factor 350mA 3.2 x 2.5 mm T/R

Verical:
Inductor Chip Molded Wirewound 1.8uH 10% 7.96MHz 30Q-Factor 350mA 900mOhm DCR 1210 T/R
