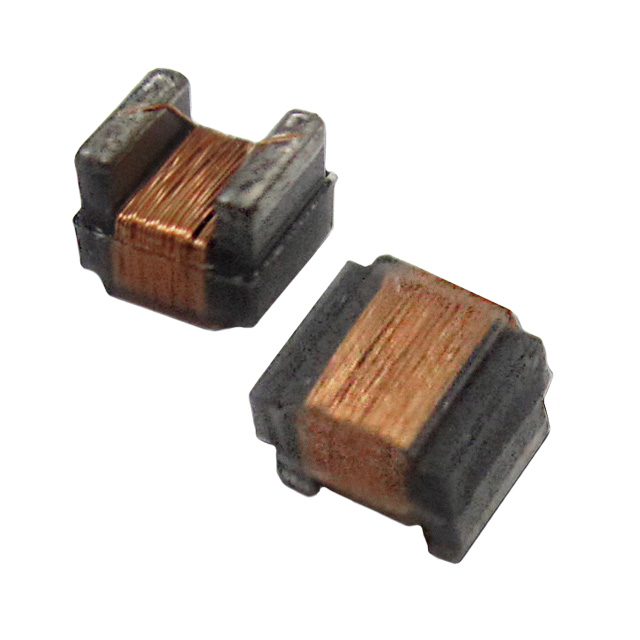

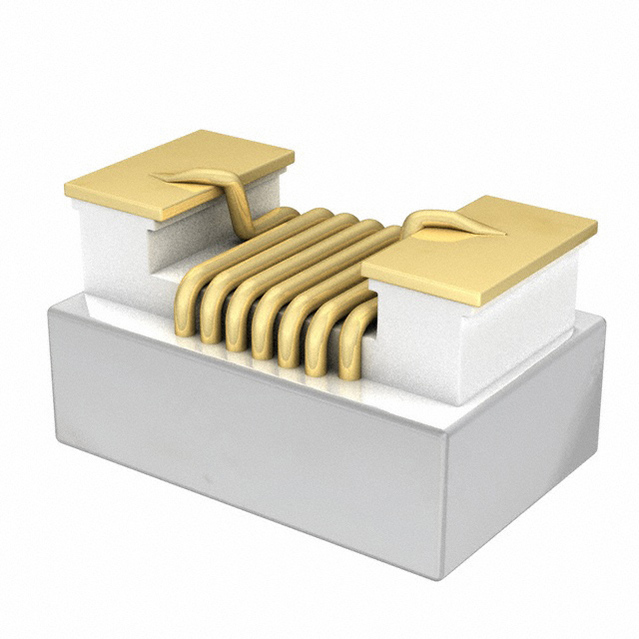

AISC-0805-R10J-T

ABRACON  AISC-0805-R10J-T  电感

100 nH 无屏蔽 绕线 器 400 mA 460 毫欧最大 0805（2012 公制）

立创商城:
100nH ±5%

得捷:
FIXED IND 100NH 400MA 460MOHM SM

贸泽:
固定电感器 100nH 5%

e络盟:
电感

艾睿:
This rf chip AISC-0805-R10J-T surface mount inductor from Abracon Corporation is ideal for applications where space is a major influence of circuit design. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This SMD inductor has a maximum DC current of 400m A with a maximum resistance of 460m Ohm. It has a tolerance of 5%. This device is made with wirewound technology. This product is 2.29 mm long, 1.55 mm tall and 1.73 mm deep. Its test frequency is 150M Hz, while its minimum self-resonant frequency is 1.2G Hz. It has an inductance of 100n H.

Chip1Stop:
Ind Chip Wirewound 100nH 5% 150MHz 60Q-Factor Ceramic 400mA 2.0 x 1.2 mm T/R

Verical:
Inductor RF Chip Wirewound 100nH 5% 150MHz 50Q-Factor Ceramic 400mA 460mOhm DCR 0805 T/R

Newark:
# ABRACON  AISC-0805-R10J-T  Surface Mount High Frequency Inductor, AISC-0805 Series, 100 nH, 400 mA, 0805 [2012 Metric]
