2.7uH ±5% 编带
2.7µH Unshielded Wirewound Inductor 290mA 3.2Ohm Max 1008 2520 Metric
得捷:
FIXED IND 2.7UH 290MA 3.2OHM SMD
立创商城:
2.7uH ±5%
艾睿:

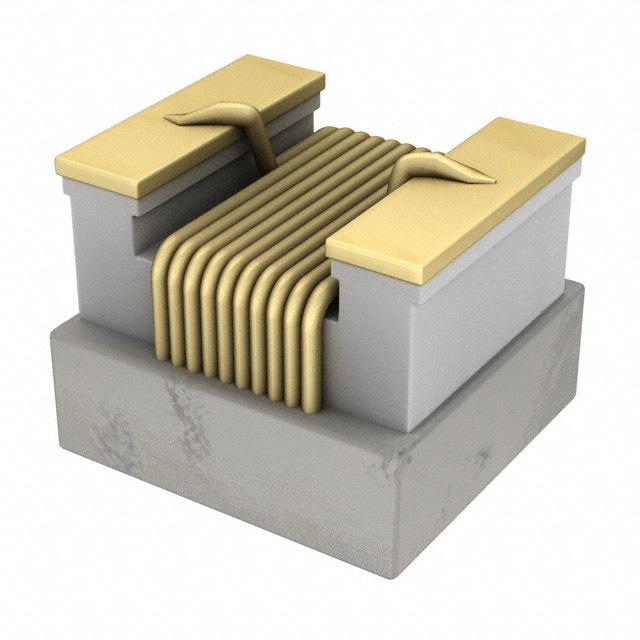

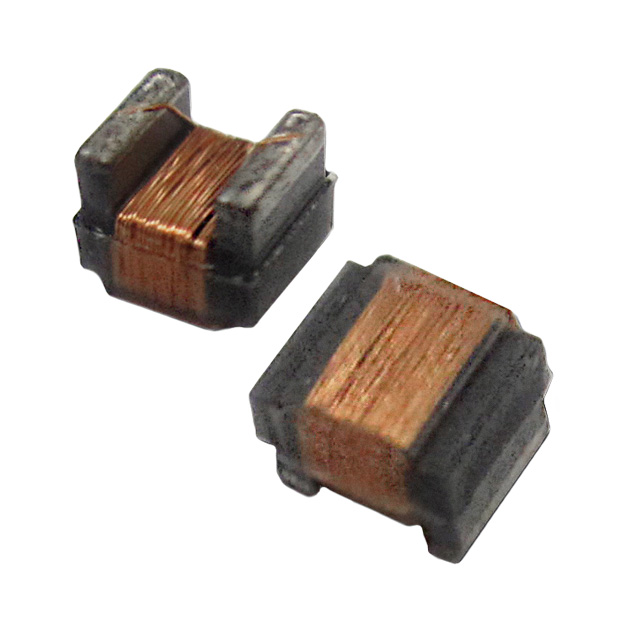

This rf chip AISC-1008-2R7J-T surface mount inductor from Abracon Corporation is available in all standard chip sizes in multilayer thick film and thin film deposition and wire wound styles. This SMD inductor has an operating temperature range of -40 °C to 125 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. It has a tolerance of 5%. This device utilizes wirewound technology. It has an inductance of 2.7u H. This SMD inductor has a maximum DC current of 290m A with a maximum resistance of 3.2 Ohm. This product is 2.92 mm long, 2.29 mm tall and 2.79 mm deep. Its test frequency is 7.9M Hz, while its minimum self-resonant frequency is 90M Hz.
Chip1Stop:
Inductor RF Chip Wirewound 2.7uH 5% 7.9MHz 22Q-Factor Ceramic 290mA 3.2Ohm DCR 1008 T/R
Verical:
Inductor RF Wirewound 2.7uH 5% 7.9MHz 22Q-Factor Ceramic 0.29A 3.2Ohm DCR 1008 T/R
