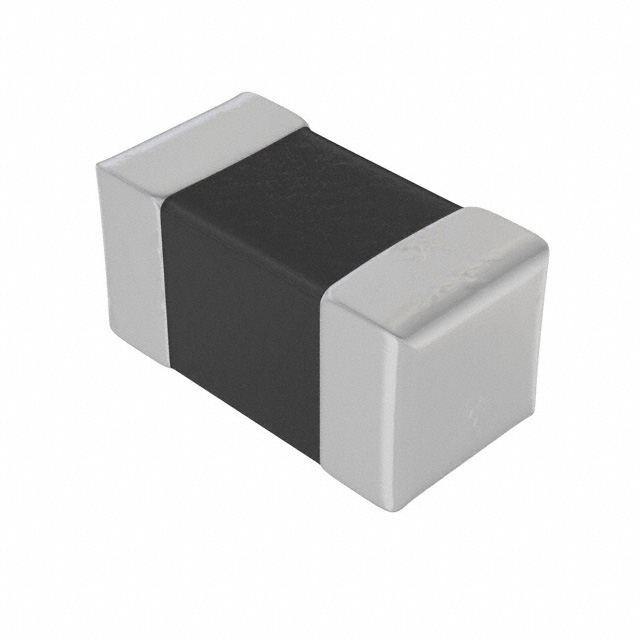

AIML-0402-2R2K-T

固定インダクタ 2200nH, 10mA Tol.=+/-5%

2.2µH Shielded Multilayer Inductor 10mA 1.75Ohm Max 0402 1005 Metric

立创商城:
2.2uH ±10%

得捷:
FIXED IND 2.2UH 10MA 1.75OHM SMD

艾睿:
This rf chip AIML-0402-2R2K-T surface mount inductor from Abracon Corporation is ideal for saving valuable space on a PCB. This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. It has an inductance of 2.2u H. This product is 1.15 mm long, 0.65 mm tall and 0.65 mm deep. This SMD inductor has a maximum DC current of 10m A with a maximum resistance of 1.75 Ohm. Its test frequency is 10M Hz, while its minimum self-resonant frequency is 28M Hz. This device is made with multi-layer technology. It has a tolerance of 10%.

安富利:
Ind Chip Shielded Multi-Layer 2.2uH 10% 10MHz 20Q-Factor Ferrite 10mA 0402 T/R

Verical:
Inductor RF Shielded Multi-Layer 2.2uH 10% 10MHz 20Q-Factor Ferrite 0.01A 1.75Ohm DCR 0402 T/R
