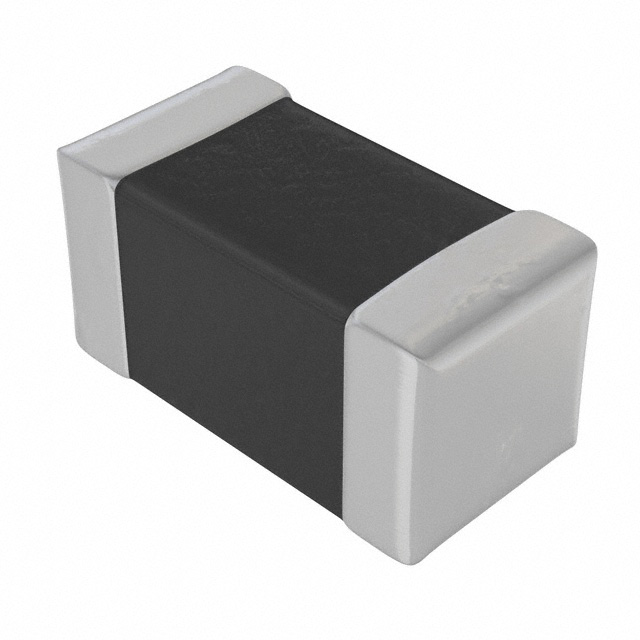

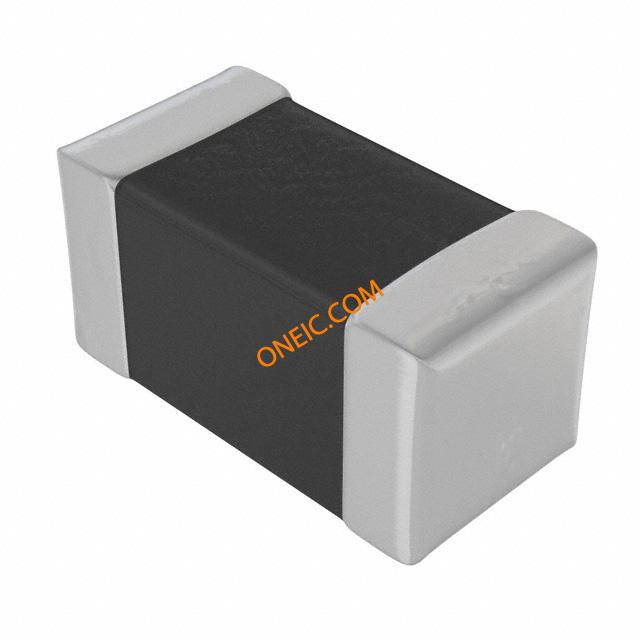

AIML 系列 0603 4.7 uH ±10 % 容差 15 mA 表面贴装 多层 电感
4.7 µH 屏蔽 多层 器 15 mA 2.1 欧姆最大 0603(1608 公制)
得捷:
FIXED IND 4.7UH 15MA 2.1 OHM SMD
立创商城:
4.7uH ±10% 2.1Ω
艾睿:
Use this rf chip AIML-0603-4R7K-T surface mount inductor from Abracon Corporation to make any circuit look clean and compact. This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This device is made with multi-layer technology. Its test frequency is 10M Hz, while its minimum self-resonant frequency is 50M Hz. It has a tolerance of 10%. This SMD inductor has a maximum DC current of 15m A with a maximum resistance of 2.1 Ohm. It has an inductance of 4.7u H. This product is 1.75 mm long, 0.95 mm tall and 0.95 mm deep.
安富利:
Ind Chip Shielded Multi-Layer 4.7uH 10% 10MHz 35Q-Factor Ferrite 15mA 0603 T/R
Verical:
Inductor RF Shielded Multi-Layer 4.7uH 10% 10MHz 35Q-Factor Ferrite 0.015A 2.1Ohm DCR 0603 T/R
额定电流 15 mA
容差 ±10 %
电感 4.7 µH
自谐频率 50 MHz
测试频率 10 MHz
电阻DC) ≤2.1 Ω
工作温度Max 125 ℃
工作温度Min -55 ℃
电阻DC Max 2.1 Ω
安装方式 Surface Mount
引脚数 2
封装公制 1608
封装 0603
长度 1.6 mm
宽度 0.8 mm
高度 0.95 mm
封装公制 1608
封装 0603
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
