330nH ±5% 编带
330nH Unshielded Wirewound Inductor 450mA 1.05Ohm Max 1008 2520 Metric
立创商城:
330nH ±5%
得捷:
FIXED IND 330NH 450MA 1.05OHM SM
艾睿:

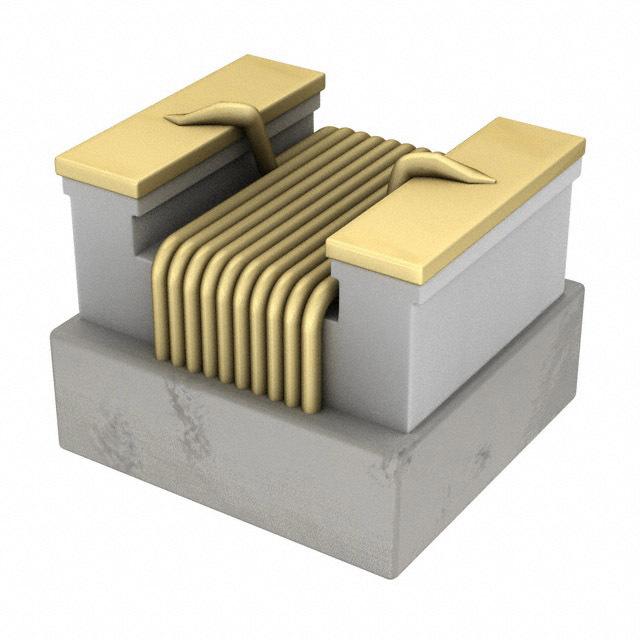

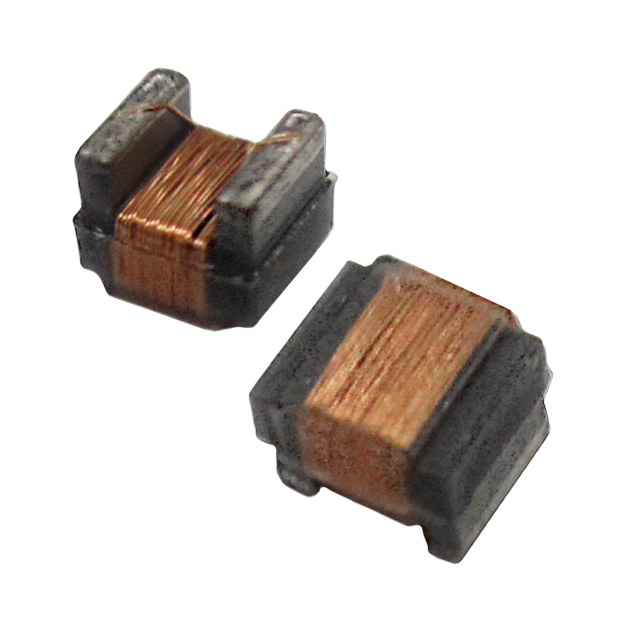

This rf chip AISC-1008-R33J-T surface mount inductor from Abracon Corporation is ideal for saving valuable space on a PCB. This SMD inductor has an operating temperature range of -40 °C to 125 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. It has a tolerance of 5%. It has an inductance of 330n H. Its test frequency is 25M Hz, while its minimum self-resonant frequency is 530M Hz. This product is 2.92 mm long, 2.29 mm tall and 2.79 mm deep. This device utilizes wirewound technology. This SMD inductor has a maximum DC current of 450m A with a maximum resistance of 1.05 Ohm.
Verical:
Inductor RF Wirewound 0.33uH 5% 25MHz 50Q-Factor Ceramic 0.45A 1.05Ohm DCR 1008 T/R
额定电流 450 mA
容差 ±5 %
电感 330 nH
自谐频率 530 MHz
Q值 50
产品系列 AISC-1008
电感公差 ±5 %
测试频率 25 MHz
电阻DC) 1.05 Ω
工作温度Max 125 ℃
工作温度Min -40 ℃
电阻DC Max 1.05 Ω
安装方式 Surface Mount
封装 1008
长度 2.92 mm
宽度 2.79 mm
高度 2.29 mm
封装 1008
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
