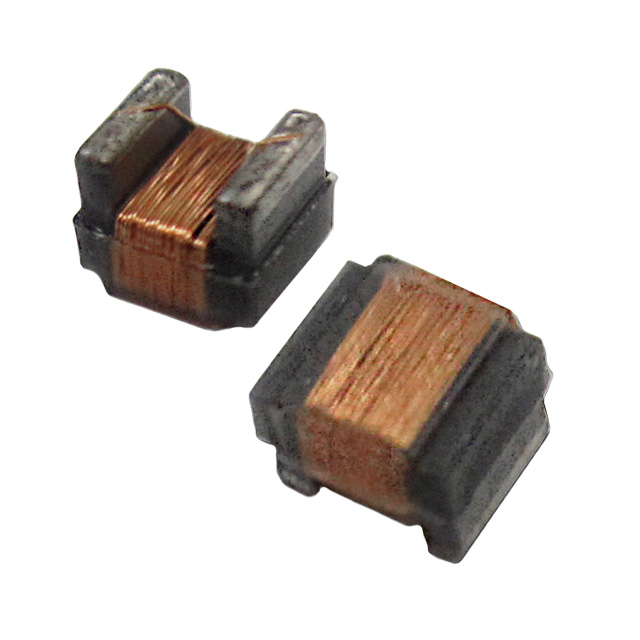

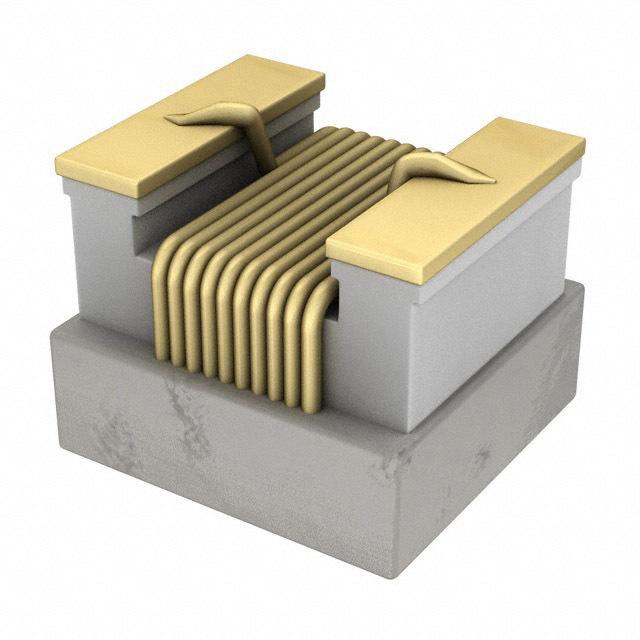

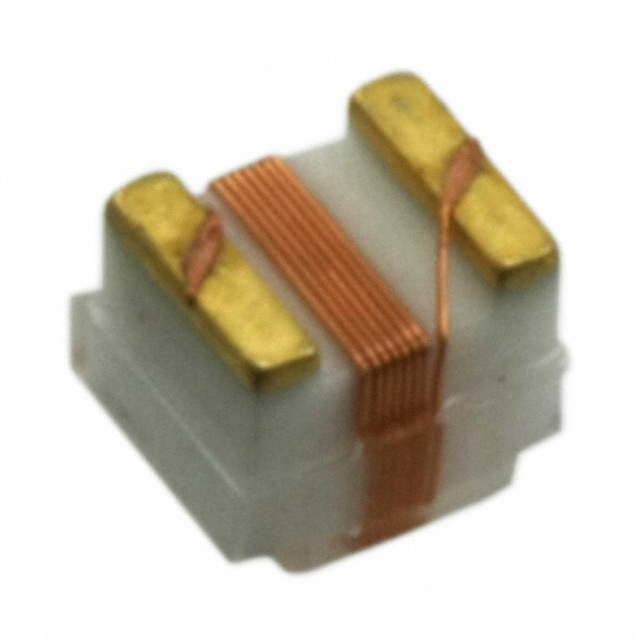

AISC-1008-R15J-T

150nH ±5% 编带

150 nH 无屏蔽 绕线 器 580 mA 620 毫欧最大 1008（2520 公制）

得捷:
FIXED IND 150NH 580MA 620MOHM SM

立创商城:
150nH ±5%

贸泽:
Fixed Inductors 150nH 5%

艾睿:
This rf chip AISC-1008-R15J-T surface mount inductor from Abracon Corporation is placed on the surface of a PCB during surface mount manufacturing processing. This SMD inductor has an operating temperature range of -40 °C to 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This SMD inductor has a maximum DC current of 580m A with a maximum resistance of 620m Ohm. This product is 2.92 mm long, 2.29 mm tall and 2.79 mm deep. It has an inductance of 150n H. Its test frequency is 25M Hz, while its minimum self-resonant frequency is 800M Hz. This device utilizes wirewound technology. It has a tolerance of 5%.

Chip1Stop:
Inductor RF Chip Wirewound 150nH 5% 25MHz 50Q-Factor Ceramic 580mA 620mOhm DCR 1008 T/R

Verical:
Inductor RF Wirewound 0.15uH 5% 25MHz 50Q-Factor Ceramic 0.58A 0.62Ohm DCR 1008 T/R

Win Source:
FIXED IND 150NH 580MA 620 MOHM
