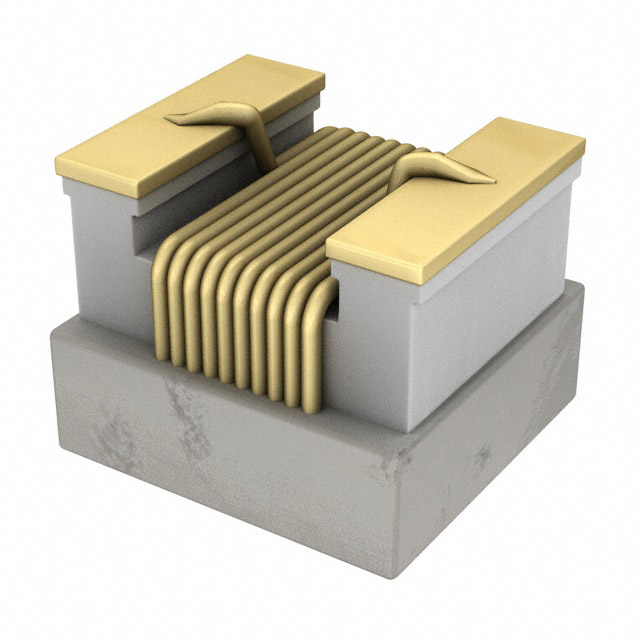

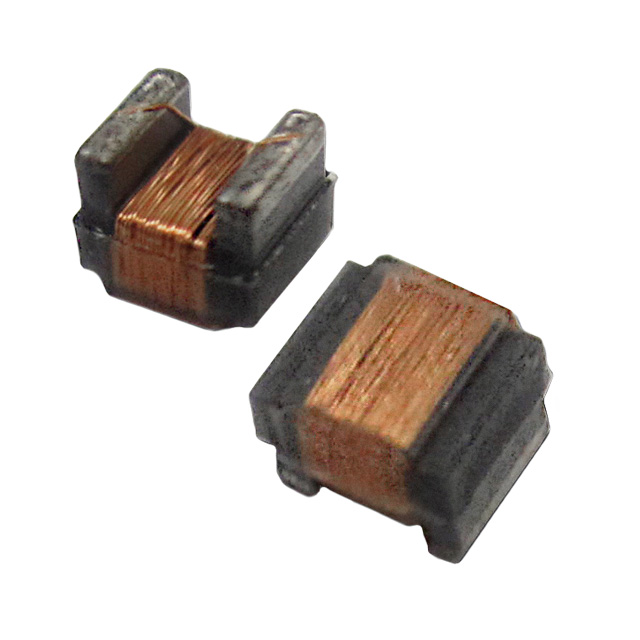

AISC-1008-R12G-T

120nH ±2% 编带

无屏蔽 绕线 器 630 毫欧最大 1008（2520 公制）

立创商城:
120nH ±2%

得捷:
FIXED IND 120NH 650MA 630MOHM SM

艾睿:
This rf chip AISC-1008-R12G-T surface mount inductor from Abracon Corporation is ideal for saving valuable space on a PCB. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This SMD inductor has a maximum DC current of 650m A with a maximum resistance of 630m Ohm. It has a tolerance of 2%. This product is 2.92 mm long, 2.29 mm tall and 2.79 mm deep. This device is made with wirewound technology. It has an inductance of 120n H. Its test frequency is 25M Hz, while its minimum self-resonant frequency is 950M Hz.

安富利:
Ind Chip Wirewound 120nH 2% 25MHz 60Q-Factor Ceramic 650mA 1008 T/R

Verical:
Inductor RF Wirewound 0.12uH 2% 25MHz 60Q-Factor Ceramic 0.65A 0.63Ohm DCR 1008 T/R
