AISC-0805-R22J-T

ABRACON  AISC-0805-R22J-T  电感

220nH Unshielded Wirewound Inductor 400mA 1.1Ohm Max 0805 2012 Metric

得捷:
FIXED IND 220NH 400MA 1.1OHM SMD

立创商城:
220nH ±5%

贸泽:
Fixed Inductors 220nH 5%

e络盟:
# ABRACON  AISC-0805-R22J-T  电感

艾睿:

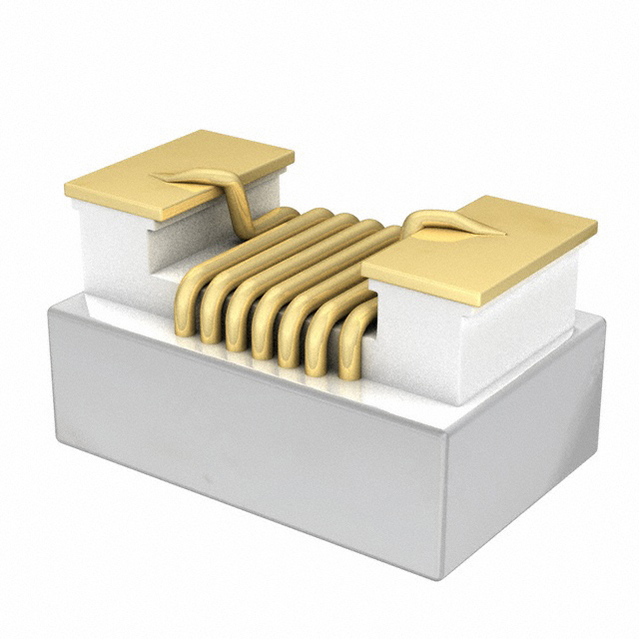

Make any circuit look clean and compact using this rf chip AISC-0805-R22J-T surface mount inductor from Abracon Corporation. This SMD inductor has an operating temperature range of -40 °C to 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. It has a tolerance of 5%. This SMD inductor has a maximum DC current of 400m A with a maximum resistance of 1.1 Ohm. It has an inductance of 220n H. This device utilizes wirewound technology. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 850M Hz. This product is 2.29 mm long, 1.55 mm tall and 1.73 mm deep.

安富利:
Ind Chip Wirewound 220nH 5% 100MHz 45Q-Factor Ceramic 400mA 0805 T/R

Chip1Stop:
Ind Chip Wirewound 220nH 5% 100MHz 45Q-Factor Ceramic 400mA 2.0 x 1.2 mm T/R

Verical:
Inductor RF Wirewound 0.22uH 5% 100MHz 45Q-Factor Ceramic 0.4A 1.1Ohm DCR 0805 T/R

Newark:
# ABRACON  AISC-0805-R22J-T  Surface Mount High Frequency Inductor, AISC-0805 Series, 220 nH, 400 mA, 0805 [2012 Metric]
