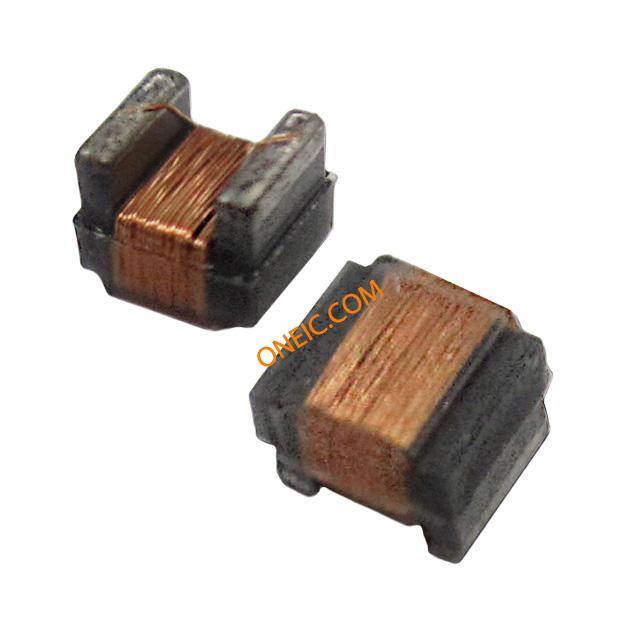

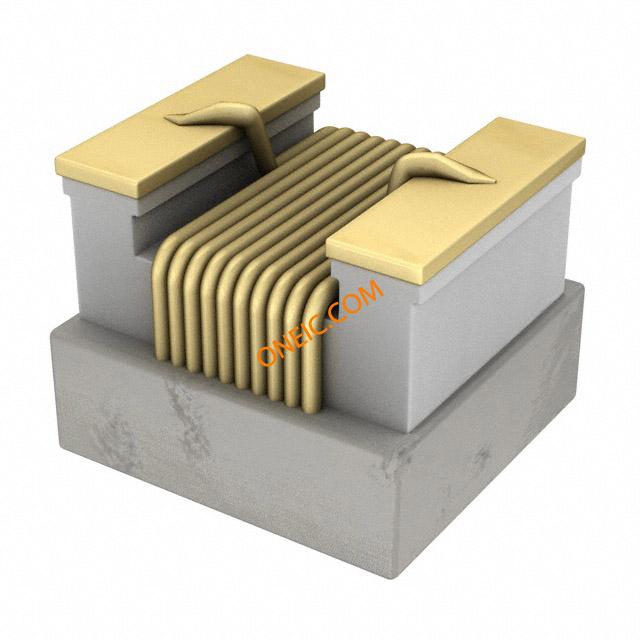

AISC-1008-R62G-T

620nH ±2% 编带

620nH Unshielded Wirewound Inductor 300mA 1.4Ohm Max 1008 2520 Metric

立创商城:
620nH ±2%

得捷:
FIXED IND 620NH 300MA 1.4OHM SMD

贸泽:
Fixed Inductors 620nH 2% -40C +125C

艾睿:
Use this rf chip AISC-1008-R62G-T surface mount inductor from Abracon Corporation to make any circuit look clean and compact. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This product is 2.92 mm long, 2.29 mm tall and 2.79 mm deep. This SMD inductor has a maximum DC current of 300m A with a maximum resistance of 1.4 Ohm. It has a tolerance of 2%. It has an inductance of 620n H. This device is made with wirewound technology. Its test frequency is 25M Hz, while its minimum self-resonant frequency is 375M Hz.

安富利:
Ind Chip Unshielded Wirewound 620nH 2% 25MHz 45Q-Factor Ceramic 300mA 1008 T/R

Verical:
Inductor RF Wirewound 0.62uH 2% 25MHz 45Q-Factor Ceramic 0.3A 1.4Ohm DCR 1008 T/R
