AISC 系列 0603 100 nH ±5 % 260 mA 线绕 电感
无屏蔽 绕线 器 660 毫欧最大 非标准
立创商城:
100nH ±5%
得捷:
FIXED IND 100NH 260MA 660MOHM SM
艾睿:

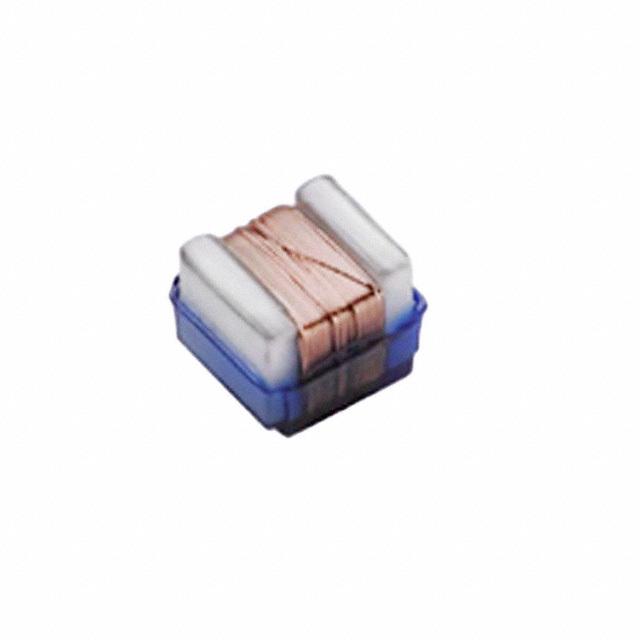

An ideal space-saving electronic component is this rf chip AISC-0603-R10J-T surface mount inductor from Abracon Corporation. This SMD inductor has an operating temperature range of -40 °C to 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. Its test frequency is 150M Hz, while its minimum self-resonant frequency is 1.8G Hz. It has a tolerance of 5%. It has an inductance of 100n H. This product is 1.8 mm long, 1.02 mm tall and 1.12 mm deep. This SMD inductor has a maximum DC current of 260m A with a maximum resistance of 660m Ohm. This device utilizes wirewound technology.
安富利:
Ind Chip Wirewound 100nH 5% 150MHz 31Q-Factor Ceramic 260mA 0603 T/R
Verical:
Inductor RF Chip Wirewound 100nH 5% 150MHz 31Q-Factor Ceramic 260mA 660mOhm DCR 0603 T/R
Win Source:
FIXED IND 100NH 260MA 660MOHM SM / 100 nH Unshielded Drum Core, Wirewound Inductor 260 mA 660mOhm Max Nonstandard
额定电流 260 mA
容差 ±5 %
电感 100 nH
自谐频率 1.8 GHz
Q值 35.0
产品系列 AISC-0603
电感公差 ±5 %
测试频率 150 MHz
电阻DC) 0.66 Ω
工作温度Max 125 ℃
工作温度Min -40 ℃
电阻DC Max 0.66 Ω
安装方式 Surface Mount
引脚数 2
封装公制 1608
封装 0603
长度 1.8 mm
宽度 1.12 mm
高度 1.02 mm
封装公制 1608
封装 0603
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
