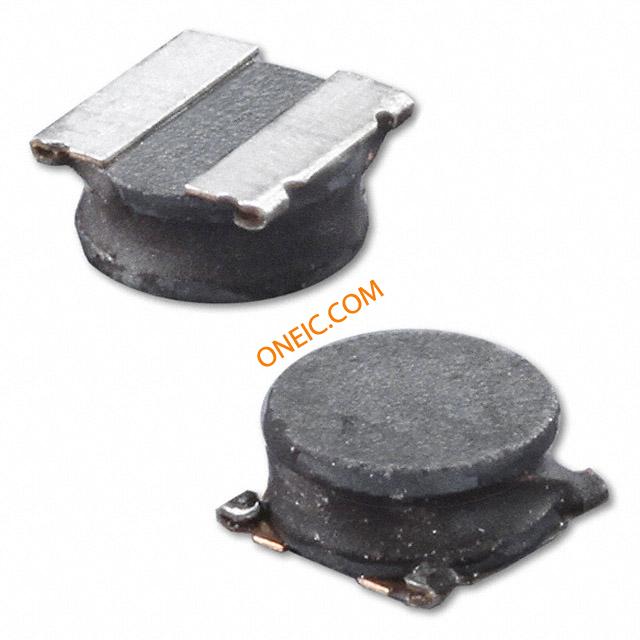

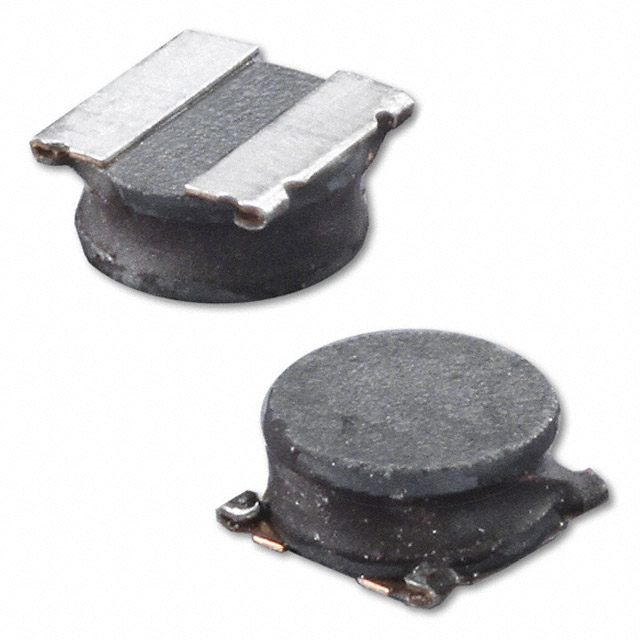

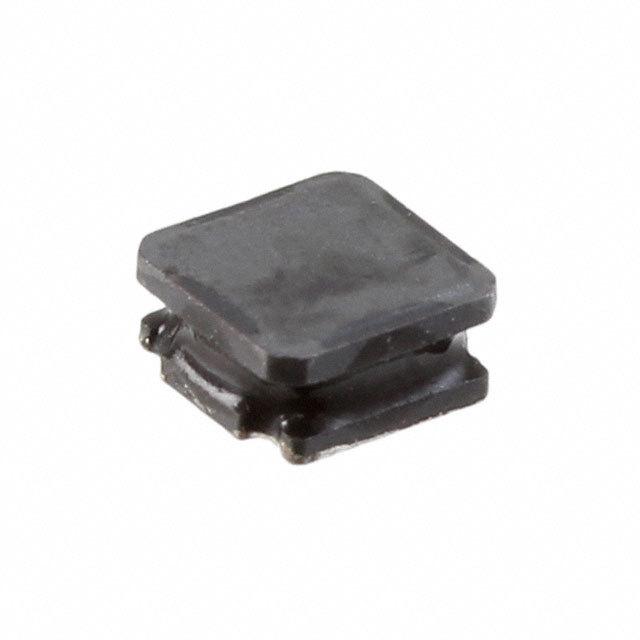

ASPI-0315FS-100M-T2

1212 10uH ±20% 1.1A

10µH Shielded Wirewound Inductor 1.1A 220mOhm Nonstandard

欧时:
FIXED IND 10UH 1.1A 220 MOHM SMD

立创商城:
10uH ±20% 1.1A 220mΩ

得捷:
FIXED IND 10UH 1.1A 220 MOHM SMD

艾睿:
This power ASPI-0315FS-100M-T2 surface mount inductor from Abracon Corporation is ideal for applications where space is a major influence of circuit design. This SMD inductor has an operating temperature range of -25 °C to 120 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. It has an inductance of 10u H. This device utilizes wirewound technology. Its test frequency is 100K Hz. It has a tolerance of 20%. This SMD inductor has a maximum DC current of 1.1Typ A with a maximum resistance of 220mTyp Ohm. This product is 3.1 mm long, 1.5 mm tall and 3.1 mm deep.

安富利:
Ind Power Shielded Wirewound 10uH 20% 100KHz Ferrite 1.1A 1212 T/R

Verical:
Inductor Power Shielded Wirewound 10uH 20% 100KHz Nickel/Zinc 1.1A 220mOhm DCR 1212 T/R

Win Source:
FIXED IND 10UH 1.1A 220 MOHM SMD / 10 µH Shielded Drum Core, Wirewound Inductor 770 mA 325mOhm Max Nonstandard
