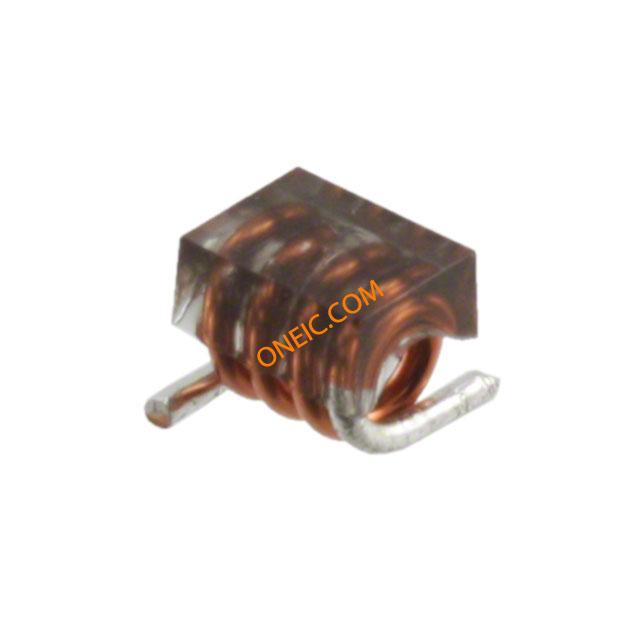

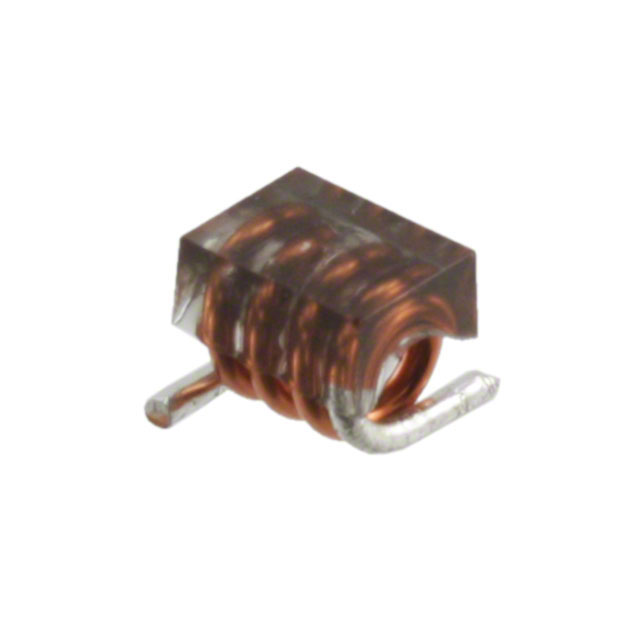

AL12A12N5JTR

空芯RF电感器 Air Core RF Inductors

12.5nH Unshielded Wirewound Inductor 4A 3.4mOhm Max Nonstandard

得捷:
FIXED IND 12.5NH 4A 3.4 MOHM SMD

艾睿:
Make any circuit look clean and compact using this AL12A12N5JTR surface mount inductor from AVX. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. It has an inductance of 12.5n H. It has a tolerance of 5%. This device is made with wirewound technology. This product is 3.18 mm tall. Its test frequency is 150M Hz, while its minimum self-resonant frequency is 3.3G Hz. This SMD inductor has a maximum DC current of 4 A with a maximum resistance of 3.4m Ohm.
