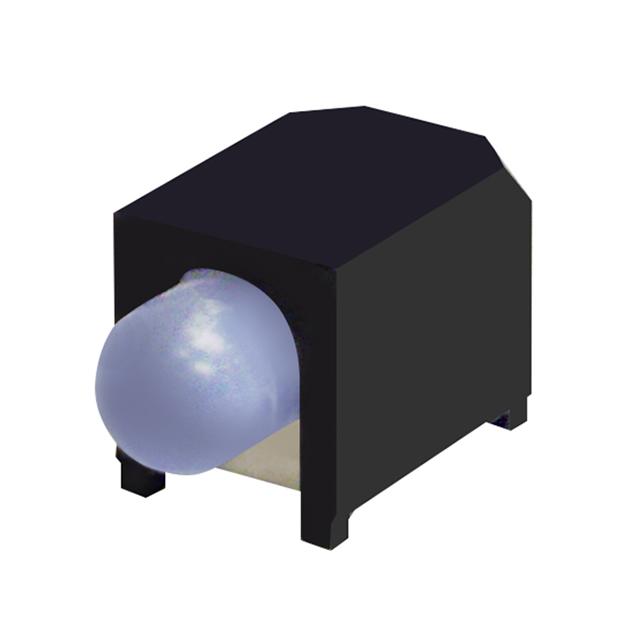

LED 电路板指示器 Single Level SMD RT Angle Bright Red
LED 电路板指示器 LED Circuit Board Indicator 红色 透明 1.8V 10mA 圆形,带圆顶 3mm,T-1 表面贴装,直角
得捷: LED 3MM 1-LEVEL RED SMD
贸泽: LED 电路板指示器 Single Level SMD RT Angle Bright Red
艾睿: LED Uni-Color Red 655nm 2-Pin T/R
波长 640 nm
视角 50°
峰值波长 640 nm
测试电流 10 mA
正向电压Max 2.5 V
正向电流Max 30 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 75 mW
额定电压 1.8 V
安装方式 Surface Mount
引脚数 2
宽度 4.32 mm
高度 5.03 mm
颜色 Red
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
数据手册
