ADL5324ARKZ-R7

ANALOG DEVICES  ADL5324ARKZ-R7  芯片, 射频驱动放大器, 1/2W, 400MHZ-4GHZ, 3-SOT-89, 整卷

GENERAL DESCRIPTION

The ADL5324 incorporates a dynamically adjustable biasing circuit that allows for the customization of OIP3 and P1dB performance from 3.3 V to 5 V, without the need for an external bias resistor. This feature gives the designer the ability to tailor driver amplifier performance to the specific needs of the design.

FEATURES

Operation from 400 MHz to 4000 MHz

Gain of 14.6 dB at 2140 MHz

OIP3 of 43.1 dBm at 2140 MHz

P1dB of 29.1 dBm at 2140 MHz

Noise figure of 3.8 dB

Dynamically adjustable bias

  Adjustable power supply bias: 3.3 V to 5 V

  Low power supply current: 62 mA to 133 mA

  No bias resistor needed

Operating temperature range of −40°C to +105°C

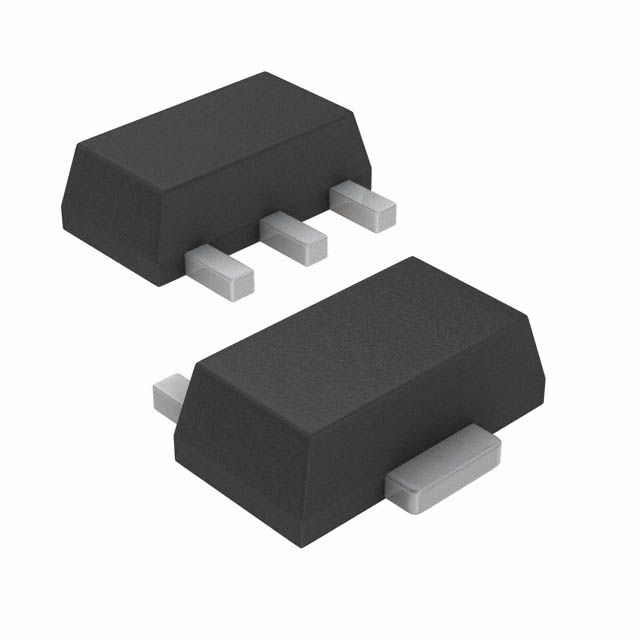

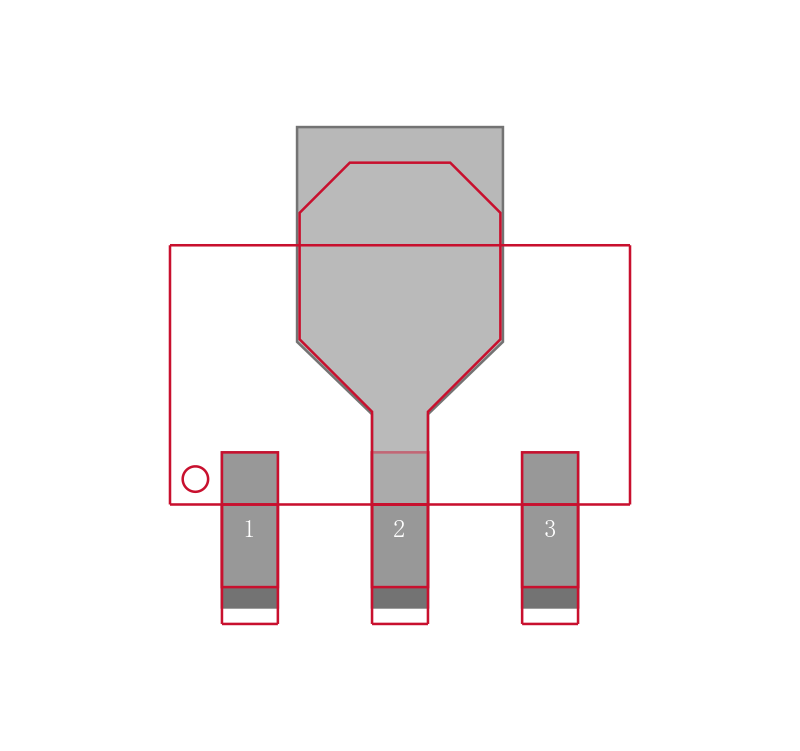

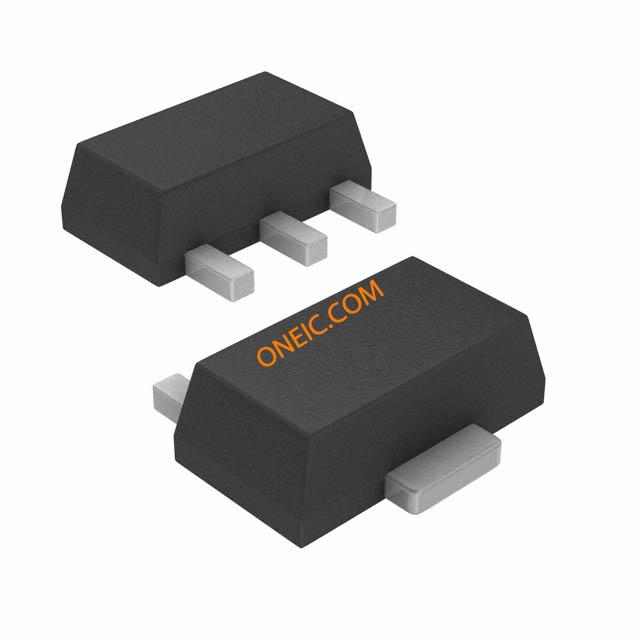

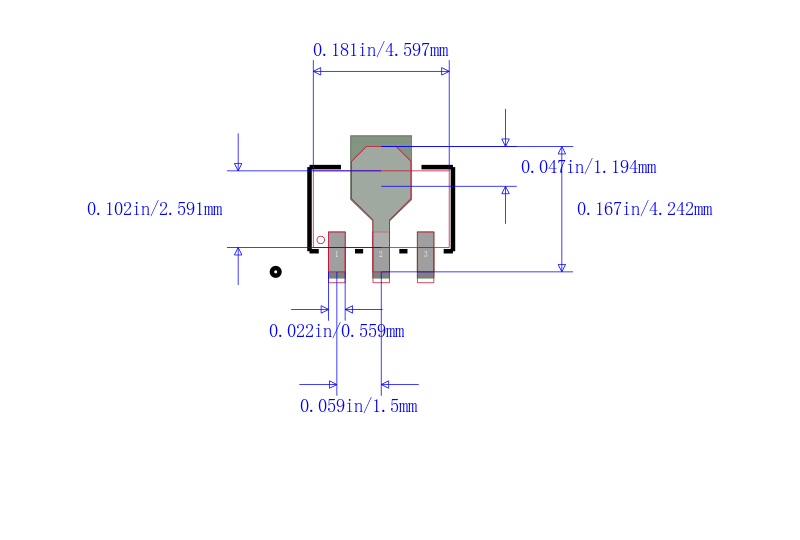

SOT-89 package, MSL-1 rated

ESD rating of ±3 kV Class 2

APPLICATIONS

Wireless infrastructure

Automated test equipment

ISM/AMR applications
