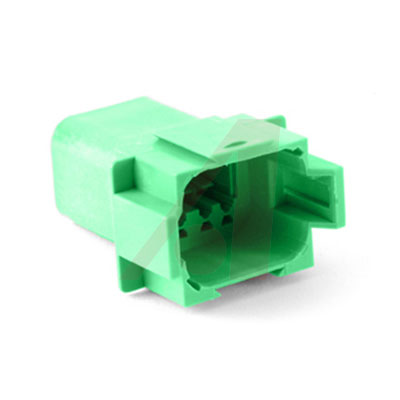

CONN RCPT 8POS 14-20AWG SIZE 16
AT Series™ connectors are a high-performance, cost-effective solution able to be used in a variety of interconnect applications: Heavy Duty, Transportation, Marine, Diagnostic, Military, Alternative Energy and Agricultural. They contain superior environmental seals and seal retention capabilities.
The connector design incorporates an integral latching system that ensures a definitive electrical and mechanical connection. Connector housings are manufactured with a thermoplastic material that is not only durable, but has excellent UV resistance, dielectric/mechanical properties and environmentally RoHS compliant. The sealing system is comprised of a front and rear silicone, multi-sealing perimeter against environmental ingress. Contacts are derived from quality copper alloy to ensure an electrically-reliable connection.
AT Series™ connectors are compatible with other existing standard products industry-wide.
* Product Type: Receptacle
* Number of Positions: 8-Way C Position Key
* Contact Size: 16
* AWG: 14-20
* AMP: 13A
* Contact Type: Pin
* Color: Green
* End Cap/Rear Seal Dimensions: .088" - .145"
