ATP06-4S-BLK

ATP06-4S-BLK图片1
ATP06-4S-BLK图片2

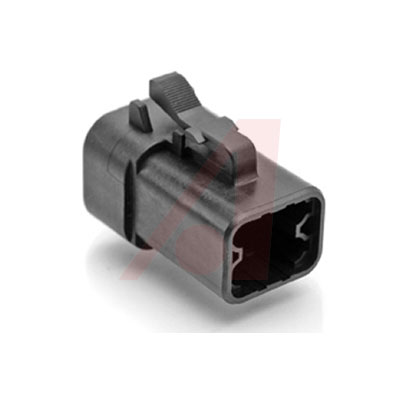

ATP06-4S-BLK图片3
ATP06-4S-BLK图片4
ATP06-4S-BLK图片5

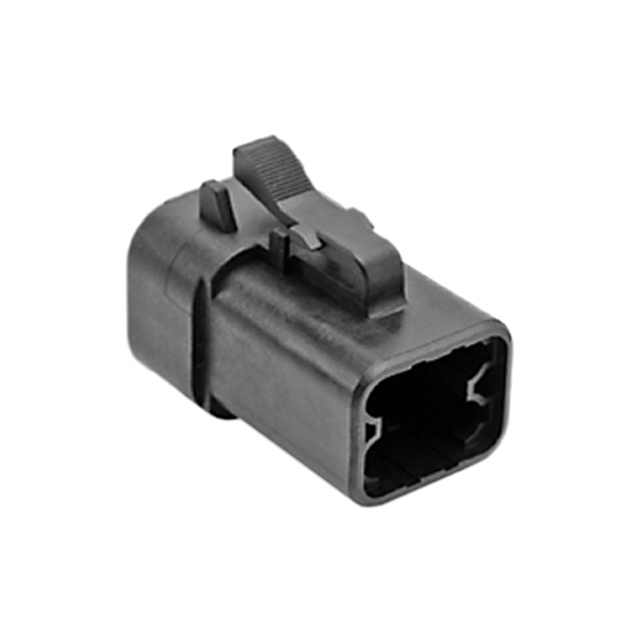

ATP06-4S-BLK图片6
ATP06-4S-BLK概述

Connector; Plug; Female; 4-Way; Socket; 25A; 10-14AWG; Sz 12; IP67; Black; ATP Series

* 2- and 4-Position Available

* Secure Integrated Latch for Mating

* Wedgelocks Assure Contact Alignment and Retention

* Hand Insertable/Removable Contacts

* Easy to Use

* Wedgelocks Are Required for All Plugs and Receptacles and Are Ordered Separately

* Superior Environmental Sealing

* Compatible with Existing Standard Products Industry Wide

* Rugged Thermoplastic Housing

* Mating Cycle Durability: 100 Cycles

* Simplified Service


Allied Electronics:
Connector; Plug; Female; 4-Way; Socket; 25A; 10-14AWG; Sz 12; IP67; Black; ATP Series


安富利:
4 PIN PLUG BLK


Verical:
Conn Housing PL 4 POS Crimp ST Cable Mount Black Automotive


ATP06-4S-BLK中文资料参数规格
技术参数

触点数 4

极性 Female

线规 10 AWG

额定电流 25 A

绝缘电阻 1000 mΩ

排数 2

针脚数 4

额定电流Max 25 A

物理参数

外壳颜色 Black

颜色 Black

工作温度 -55℃ ~ 125℃

其他

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买ATP06-4S-BLK
型号: ATP06-4S-BLK
描述:Connector; Plug; Female; 4-Way; Socket; 25A; 10-14AWG; Sz 12; IP67; Black; ATP Series
