AT06-12SB

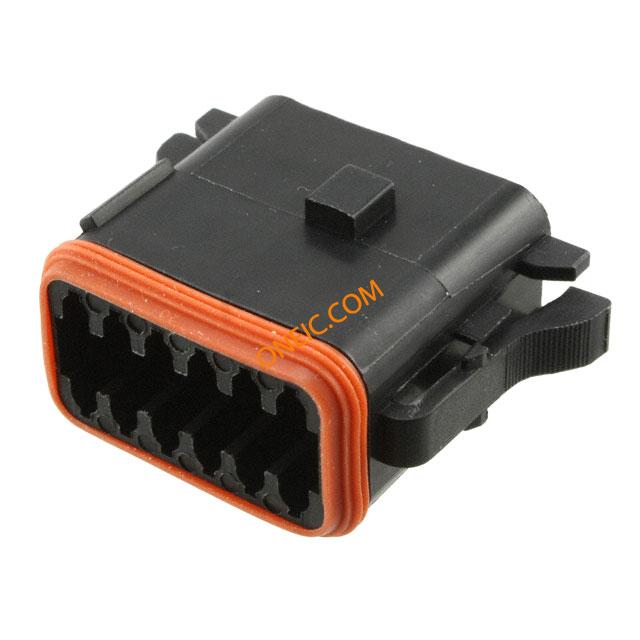

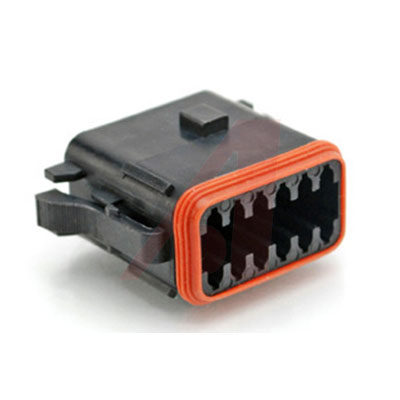

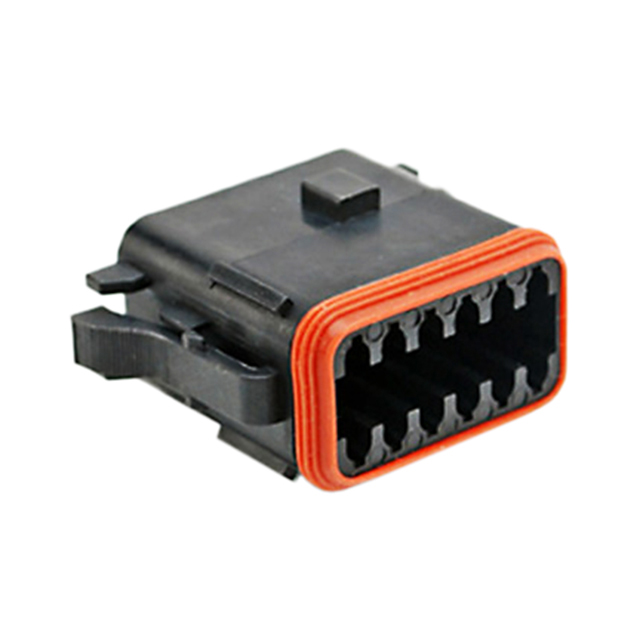

AMPHENOL SINE SYSTEMS  AT06-12SB  12 Pin Plug Key Position B 14R5595 新

AT Series™ connectors are a high-performance, cost-effective solution able to be used in a variety of interconnect applications: Heavy Duty, Transportation, Marine, Diagnostic, Military, Alternative Energy and Agricultural. They contain superior environmental seals and seal retention capabilities.

The connector design incorporates an integral latching system that ensures a definitive electrical and mechanical connection. Connector housings are manufactured with a thermoplastic material that is not only durable, but has excellent UV resistance, dielectric/mechanical properties and environmentally RoHS compliant. The sealing system is comprised of a front and rear silicone, multi-sealing perimeter against environmental ingress. Contacts are derived from quality copper alloy to ensure an electrically-reliable connection.

AT Series™ connectors are compatible with other existing standard products industry-wide.

* Product Type: Plug

* Number of Positions: 12-Way B Position Key

* Contact Size: 16

* AWG: 14-20

* AMP: 13A

* Contact Type: Socket

* Color: Black

* End Cap/Rear Seal Dimensions: .088" - .145"
