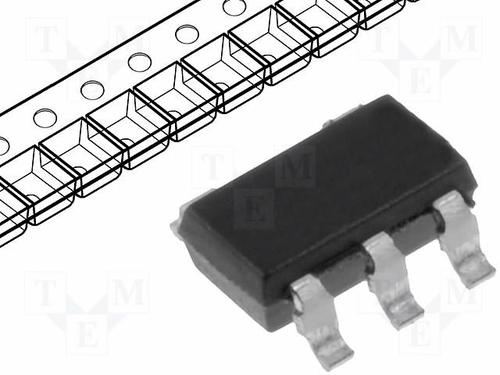

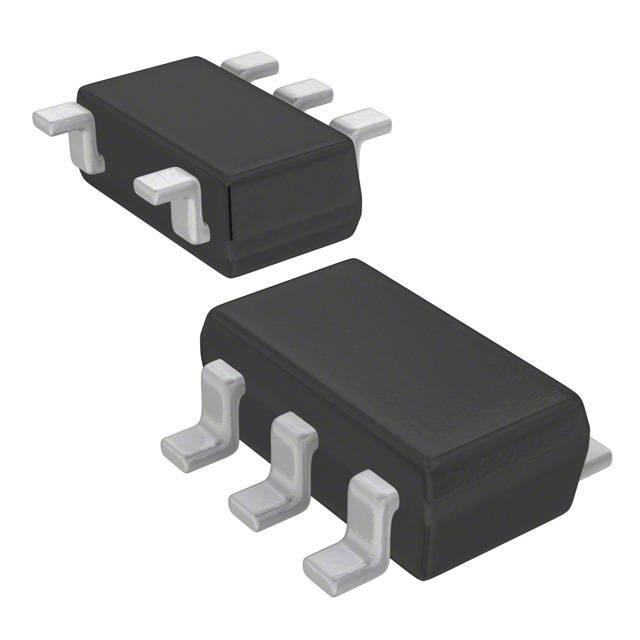

ANALOG DEVICES AD8211YRJZ-R2 电流检测放大器, 高电压, 1个放大器, SOT-23, 5 引脚, -40 °C, 125 °C
电流感应放大器,Analog Devices
如果存在较大共模电压,电流感应放大器可准确放大较小电压。
得捷:
IC CURRENT MONITOR 0.25% SOT23-5
立创商城:
AD8211YRJZ-R2
欧时:
Analog Devices AD8211YRJZ-R2 单 电流分流监控器, 缓冲输出, 5引脚 SOT-23封装
贸泽:
Current Sense Amplifiers IC High VTG
e络盟:
电流检测放大器, 高电压, 1个放大器, SOT-23, 5 引脚, -40 °C, 125 °C
艾睿:
The Analog Devices current shunt monitor AD8211YRJZ-R2 differential amplifier can help you amplify many low power audio samples using not just one, but two channels. This part has a temperature range of -40 °C to 125 °C. This device uses a single power supply. It has a single channel per chip.
安富利:
The AD8211 is a high voltage, precision current shunt amplifier. It features a set gain of 20 V/V, with a typical ±0.35% gain error over the entire temperature range. The buffered output voltage directly interfaces with any typical converter. Excellent commonmode rejection from -2 V to +65 V is independent of the 5 V supply. The AD8211 performs unidirectional current measurements across a shunt resistor in a variety of industrial and automotive applications, such as motor control, solenoid control, or battery management.Special circuitry is devoted to output linearity being maintained throughout the input differential voltage range of 0 mV to 250 mV, regardless of the common-mode voltage present. The AD8211 has an operating temperature range of -40°C to +125°C and is offered in a small 5-lead SOT package.
Chip1Stop:
SP Amp Current Shunt Monitor Single 5.5V 5-Pin SOT-23 T/R
TME:
Current source; 500kHz; Channels:1; -2÷65V; SOT23-5
Verical:
SP Amp Current Shunt Monitor Single 5.5V 5-Pin SOT-23 T/R
Newark:
# ANALOG DEVICES AD8211YRJZ-R2 Current Sense Amplifier, High Voltage, 1 Amplifier, SOT-23, 5 Pins, -40 °C, 125 °C
Win Source:
Current Monitor Regulator High/Low-Side SOT-23-5
电源电压DC 4.50V min
输出电压 4.95 V
供电电流 2.00 mA
通道数 1
针脚数 5
共模抑制比 120 dB
带宽 500 kHz
转换速率 4.50 V/μs
增益频宽积 500 kHz
输入补偿电压 1 mV
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±0.25 %
共模抑制比Min 75dB ~ 85dB
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 5

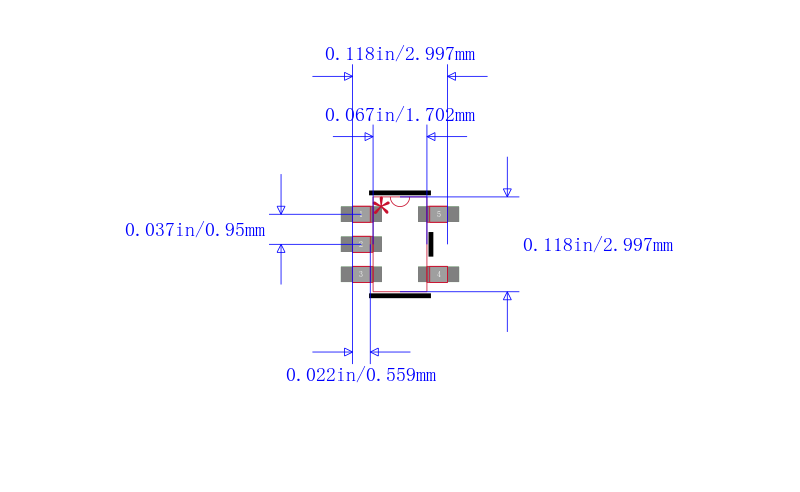

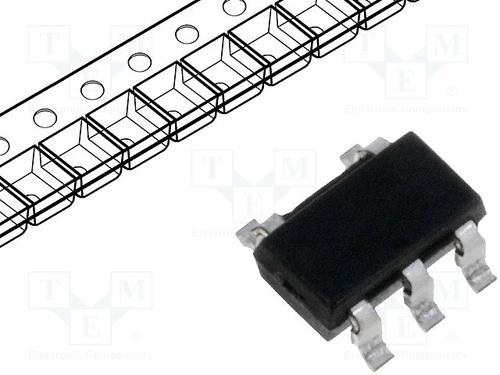

封装 SOT-23-5
长度 3 mm
宽度 1.6 mm
高度 1.3 mm
封装 SOT-23-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 工业, 车用, Industrial, Sensing & Instrumentation, 电源管理, Sensor Interface, 传感与仪器, Automotive, Motor Drive & Control, 电机驱动与控制, Power Management
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
AD8211YRJZ-R2 ADI 亚德诺 | 当前型号 | 当前型号 |
AD8211YRJZ-RL7 亚德诺 | 完全替代 | AD8211YRJZ-R2和AD8211YRJZ-RL7的区别 |
AD8211YRJZ-RL 亚德诺 | 类似代替 | AD8211YRJZ-R2和AD8211YRJZ-RL的区别 |
TSC101BILT 意法半导体 | 功能相似 | AD8211YRJZ-R2和TSC101BILT的区别 |
