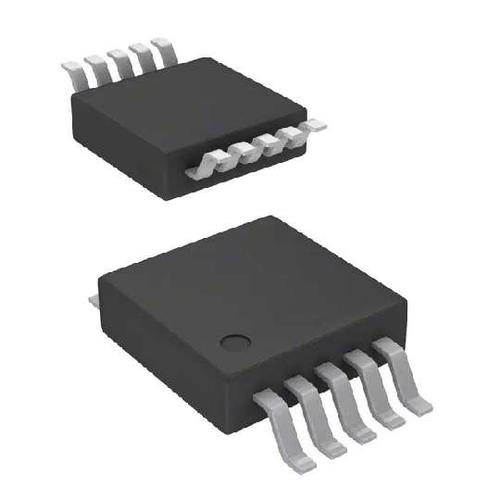

ANALOG DEVICES AD8475BRMZ 芯片, 差分放大器, 150MHZ, 50V/US, MSOP-10
Product Details
The AD8475 is a fully differential, attenuating amplifier with integrated precision gain resistors. It provides precision attenuation by 0.4 or 0.8, common-mode level shifting, and single-ended-to-differential conversion along with input overvoltage protection. Power dissipation on a single 5 V supply is only 16 mW.
The AD8475 is a simple to use, fully integrated precision gain block, designed to process signal levels of up to ±10 V on a single supply. It provides a complete interface to make industrial level signals directly compatible with the differential input ranges of low voltage high performance 16-bit or 18-bit single-supply successive approximation SAR analog-to-digital converters ADCs.
The AD8475 comes with two standard pin-selectable gain options: 0.4 and 0.8. The gain of the part is set by driving the input pin corresponding to the appropriate gain.
The AD8475 also provides overvoltage protection from large industrial input voltages up to ±15 V while operating on a single 5 V supply. The VOCM pin adjusts the output voltage common mode for precision level shifting, to match the ADC’s input range and maximize dynamic range.
The AD8475 works extremely well with SAR, Σ-Δ, and pipeline converters. The high current output stage of the part allows it to drive the switched capacitor front-end circuits of many ADCs with minimal error.
Unlike many differential drivers in the market, the AD8475 is a high precision amplifier. With 500 μV maximum output offset, 10 nV/√Hz output noise, and −112 dB THD + N, the AD8475 pairs well with high accuracy converters. Considering its low power consumption and high precision, the slew-enhanced AD8475 has excellent speed, settling to 18-bit precision for 4 MSPS acquisition.
The AD8475 is available in a space-saving 16-lead 3 mm × 3 mm LFCSP package and a 10-lead MSOP package. It is fully specified over the −40°C to +85°C temperature range.
**Applications**
### Features and Benefits
供电电流 3 mA
电路数 1
通道数 1
针脚数 10
耗散功率 16 mW
共模抑制比 86 dB
带宽 150 MHz
转换速率 50.0 V/μs
增益频宽积 150 MHz
输入补偿电压 50 µV
工作温度Max 85 ℃
工作温度Min -40 ℃
3dB带宽 150 MHz
耗散功率Max 16 mW
共模抑制比Min 86 dB
电源电压 3V ~ 10V
电源电压Max 10V ~ 15V
电源电压Min 3 V
安装方式 Surface Mount
引脚数 10
封装 MSOP-10
长度 3 mm
宽度 3 mm
高度 0.85 mm
封装 MSOP-10
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
制造应用 Healthcare, Avionics, Clinical Monitoring, Life Sciences & Medical Instrumentation, Aerospace and Defense, ECG Patient Monitoring, Spectrometer, Unmanned Systems
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
AD8475BRMZ ADI 亚德诺 | 当前型号 | 当前型号 |
AD8475BRMZ-R7 亚德诺 | 类似代替 | AD8475BRMZ和AD8475BRMZ-R7的区别 |
AD8475BRMZ-RL 亚德诺 | 类似代替 | AD8475BRMZ和AD8475BRMZ-RL的区别 |
