ATR7032-PVPW

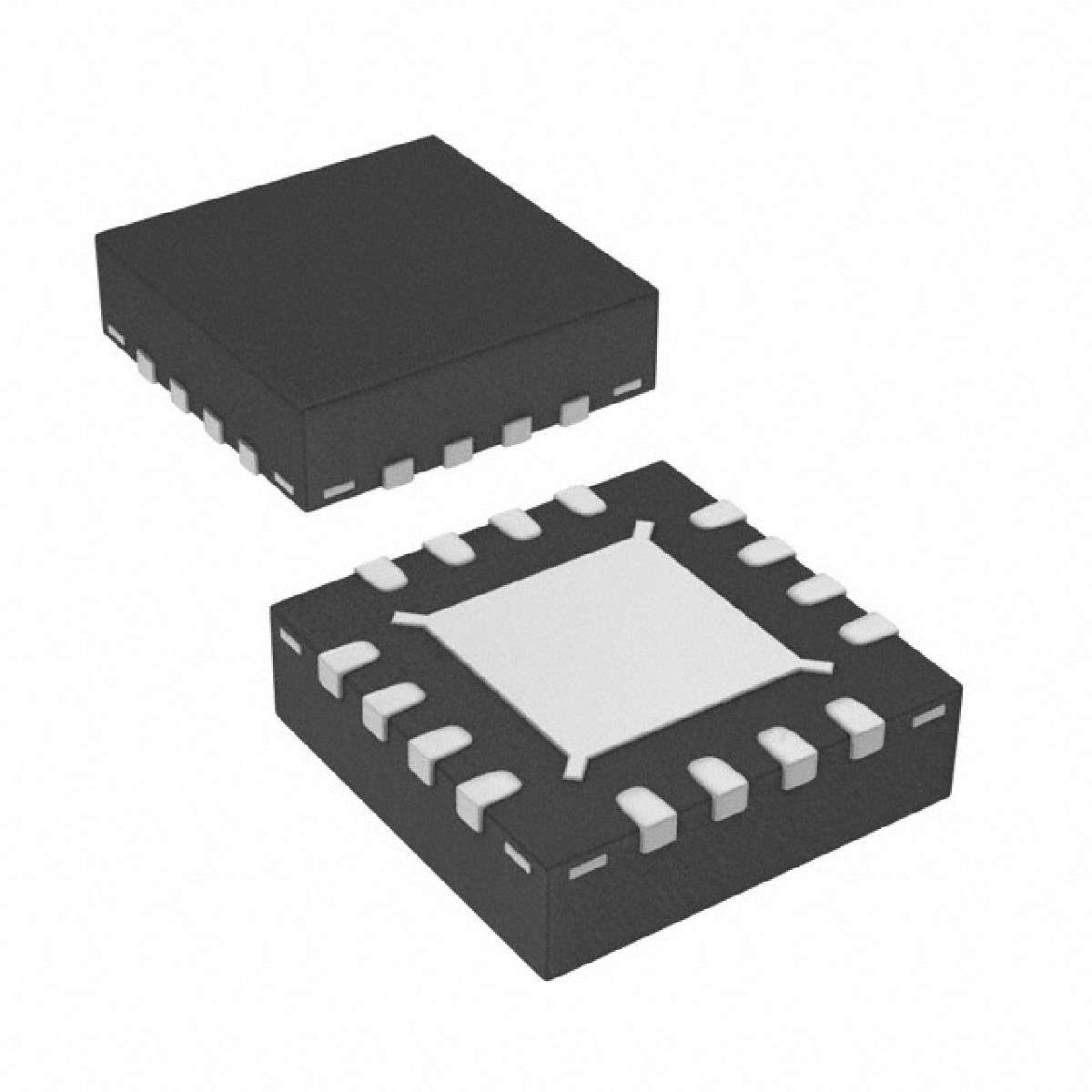

RF Amp Chip Single Power Amp 2.5GHz 3.6V 16Pin QFN EP T/R

Description

This power amplifier PA is designed for high-performance 802.11b and 802.11g multi-mode applications such as Mini PCI and PCMCIA for portable devices and access points. The low profile plastic package with internal input matching to 50Ω and on-chip interstage matching minimizes the PCB board-space and allows simplified integration with very few passive components. The on-chip power detector provides a voltage linear to the output power, while the standby/bias control logic provides power-saving and shutdown options. The PA is realized as a three stage PA with

internal interstage matching and an open-collector output structure.

Features

• Frequency Range 2.4 GHz to 2.5 GHz

• Supply Voltage 2.7V to 3.6V

• 32 dB Power Gain

• 23 dBm Linear Output Power for IEEE 802.11b Mode Operation

• EVM < 2.0% at 19 dBm Output Power for IEEE 802.11g Mode Operation

• On-chip Power Detector with 20 dB Dynamic Range

• Power-down Mode and Biasing Control

• Input and Interstage Matching Fully On-chip

• Low Profile Lead-free Plastic Package QFN16 3 ×3 ×0.9 mm

Applications

• IEEE 802.11b DSSS WLAN

• IEEE 802.11g OFDM WLAN

• PC Cards, PCMCIA, Access Points

• 2.4 GHz ISM Band Application
