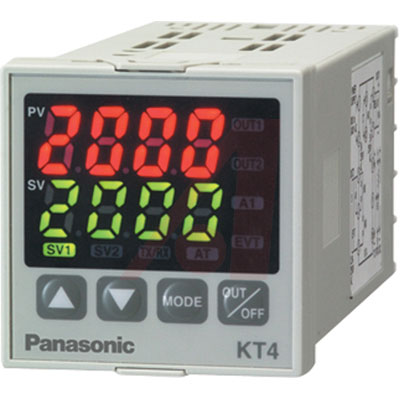

TEMPERATURE CONTROLLER-48X48mm, AC-DC 24V, 12V/40mAOUT-1, 1POINT ALARM
**All Models Are Compliant with: UL, CSA, CE** The KT Series temperature controllers are available in 1⁄4, 1⁄8, 1⁄16 and 1⁄32 DIN sizes. A variety of inputs are accepted with dual displays. IP66 Front panel with optional RS485 Modbus communication support. **Input Types. Thermocouple:** K, J, R, S, B, E, T, N, PL-II, C with Re5-26. **RTD**: PT100, JPt100 3-conductor system. **Current:** 0 to 20 mA, 4 to 20 mA. **Voltage:** 0 to 1 VDC, 0 to 5 VDC, 1 to 5 VDC, 0 to 10 VDC. **Specifications:**
* Dielectric Strength: 1.5 kVAC for 1Minute Between Input Terminal and Power Terminal
* Supply Voltage: 100 to 240 VAC 50/60 Hz, 24 VAC/VDC 50/60 Hz
* Power Consumption: Approx. 5 VA KT2, 8 VA Others
* Weight: Approx. 120 g KT2, 150 g Others
* Material: Flame Resistant Resin Case
