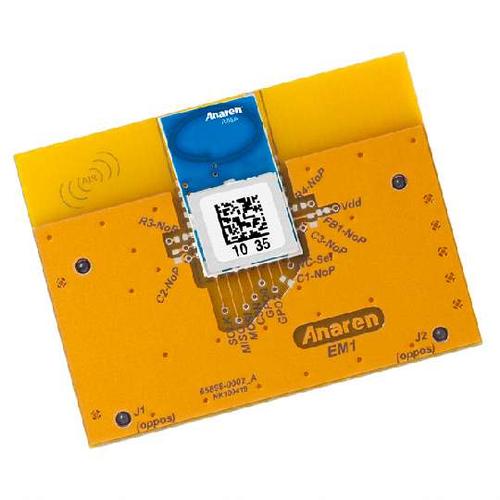

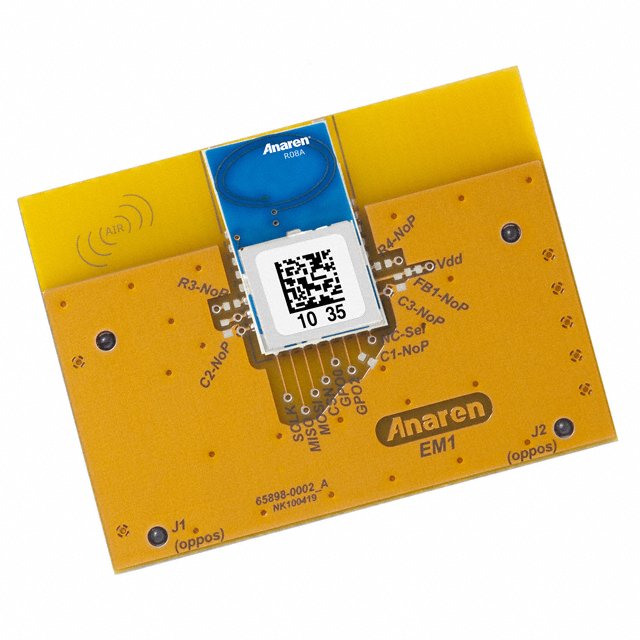

ANAREN A1101R08A-EM1 射频评估模块, 868MHZ
is an evaluation module with an A1101R08A radio module in the industry"s smallest package mounted on it. This evaluation module is designed specifically for compatibility with SmartRF 04, SmartRF 05 and Maverick evaluation boards. Each A1101R08A module is ETSI compliant and incorporates the Texas Instruments CC1101 transceiver chip. As a standalone module for user final design implementation A1101R08A has an LGA pad footprint with an integrated antenna, this module is designed to effortlessly integrate into a wide range of applications. The A1101R08A-EM1 is a high performance, interface board with an ETSI compliant A1101R08A integrated antenna radio module mounted for quick connection to the Texas Instruments CC1101DK Development Kit.
- .
- Digital RSSI output
- .
- High sensitivity, Low current consumption
- .
- Impedance controlled, multi layer PCB
- .
- Efficient SPI interface, all registers can be programmed with one burst transfer
- .
- No additional DC decoupling and harmonic filtering required
- .
- Integrated analog temperature sensor
- .
- Excellent receiver selectivity and blocking performance
- .
- Suitable for frequency hopping systems, thanks to a fast settling frequency synthesizer
- .
- Impedance matched balun for optimized efficiency
- .
- Easily implemented on a two layer PCB
ESD sensitive device. Precautions should be used when handling the device in order to prevent permanent damage.
This product is not to be used in any implantable medical device or external medical device intended to regulate or monitor biological functions.
