AC05000001501JAC00

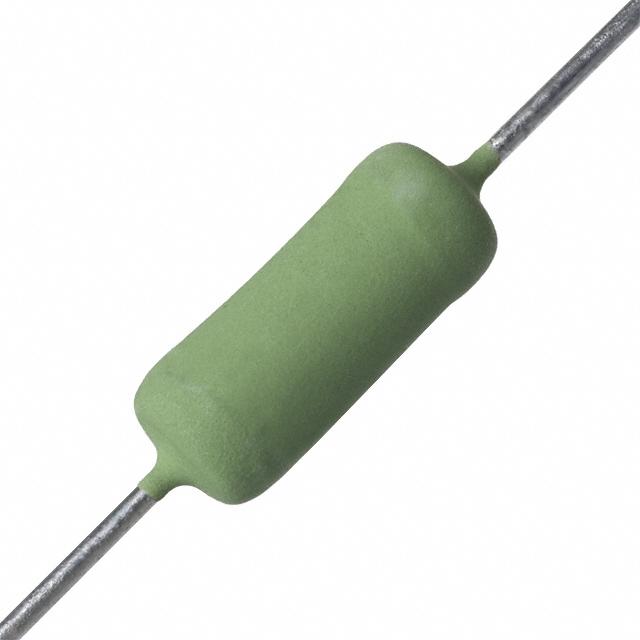

VISHAY  AC05000001501JAC00  通孔电阻器, AC系列, 1.5 kohm, 5 W, ± 5%, 轴向引线

* All welded construction

* Ceramic core

* Non-flammable cement coating

* Tinned copper-clad iron leadsfor axial parts

* High power dissipation in small volume

* Ideal for pulse application

* Lead Pb-free

欧时:
### AC05 系列 5W，轴向所有焊接结构 陶瓷芯 非易燃粘固粉涂层 镀锡包铜铁导线（用于轴向部件） 高功耗于小体积内 适用于脉冲应用 Power at 40°C | 5 W |   ---|---|--- Power at 70°C | 4.7 W |   Resistance Tolerance | 5 % |   Temperature Coefficient | 100mΩ → 910Ω | 1kΩ → 10kΩ   | -10 → -80 ppm/°C | 100 → 180 ppm/°C Operating Temperature | -40 → 70 °C |   Limiting Element Voltage | √PR |   Body length | 18 mm |   Body diameter | 7.5 mm |   Lead diameter | 0.8 mm |   Lead Length | 23 mm |   ### 陶瓷线绕，轴向 - 1W 到 17W### 陶瓷 Wirewound，轴向 - 1W 到 17W

TME:
Resistor: wire-wound; THT; 1.5kΩ; 5W; ±5%; Ø7.5x18mm; -40÷275°C

Newark:
# VISHAY  AC05000001501JAC00  Through Hole Wirewound Resistor, AC Series, 1.5 kohm, 5 W, - 5%, 87 V, Axial Leaded
