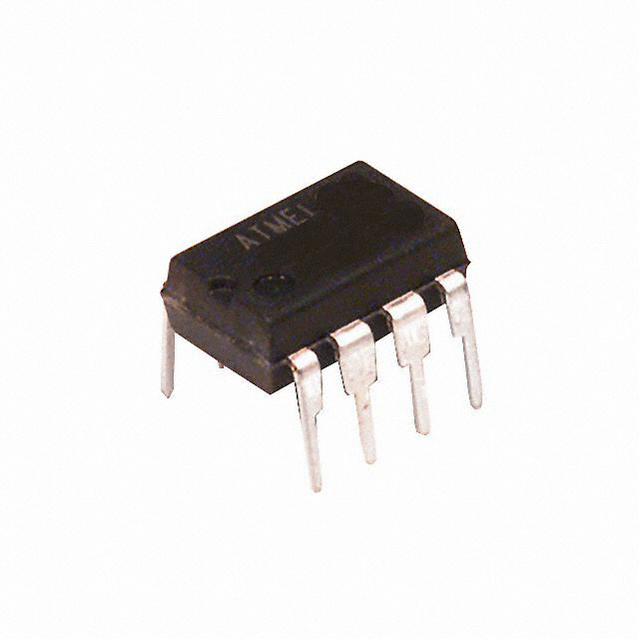

AT24C64A-10PI-2.7

EEPROM Serial-2Wire 64Kbit 8K x 8 3.3V/5V 8Pin PDIP

Description

The AT24C32A/64A provides 32,768/65,536 bits of serial electrically erasable and programmable read only memory EEPROM organized as 4096/8192 words of 8 bits each. The device’s cascadable feature allows up to 8 devices to share a common 2-wire bus. The device is optimized for use in many industrial and commercial applications where low power and low voltage operation are essential. The AT24C32A/64A is available in space saving 8-lead JEDEC PDIP, 8-lead JEDEC SOIC, 8-lead EIAJ SOIC, 8-lead MAP and 8-lead TSSOP packages and is accessed via a 2-wire serial interface. In addition, the entire family isavailable in 2.7V 2.7V to 5.5V and 1.8V

1.8V to 5.5V versions.

Features

• Low-Voltage and Standard-Voltage Operation

– 2.7 VCC= 2.7V to 5.5V

– 1.8 VCC= 1.8V to 5.5V

• Low-Power Devices ISB= 6 µA @ 5.5V Available

• Internally Organized 4096 x 8, 8192 x 8

• 2-Wire Serial Interface

• Schmitt Trigger, Filtered Inputs for Noise Suppression

• Bidirectional Data Transfer Protocol

• 100 kHz 1.8V and 400 kHz 2.5V Clock Rate for AT24C32A

• 400 kHz 1.8V Clock Rate for AT24C64A

• Write Protect Pin for Hardware Data Protection

• 32-Byte Page Write Mode Partial Page Writes Allowed

• Self-Timed Write Cycle 5 ms Max

• High Reliability

– Endurance: 1 Million Write Cycles

– Data Retention: 100 Years

• Automotive Grade, Extended Temperature and Lead-free/Halogen-free Devices Available

• 8-lead JEDEC PDIP, 8-lead JEDEC SOIC, 8-lead EIAJ SOIC, 8-lead MAP and 8-lead TSSOP Packages
