AT27C256R-90JI

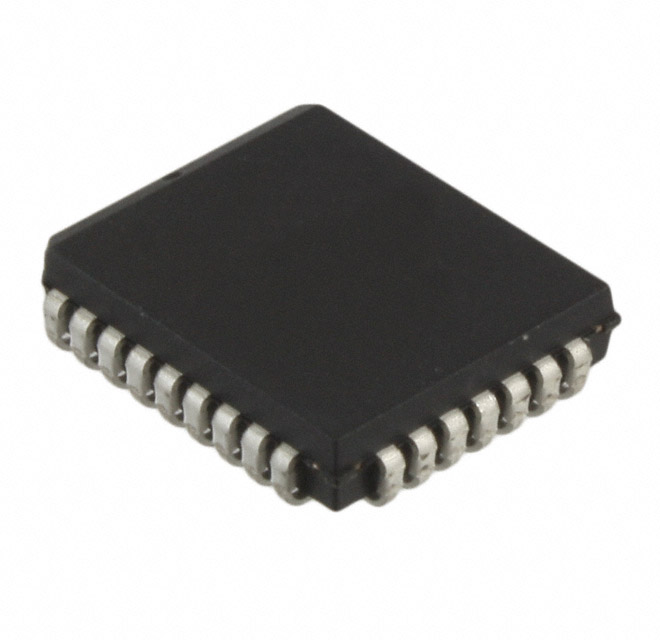

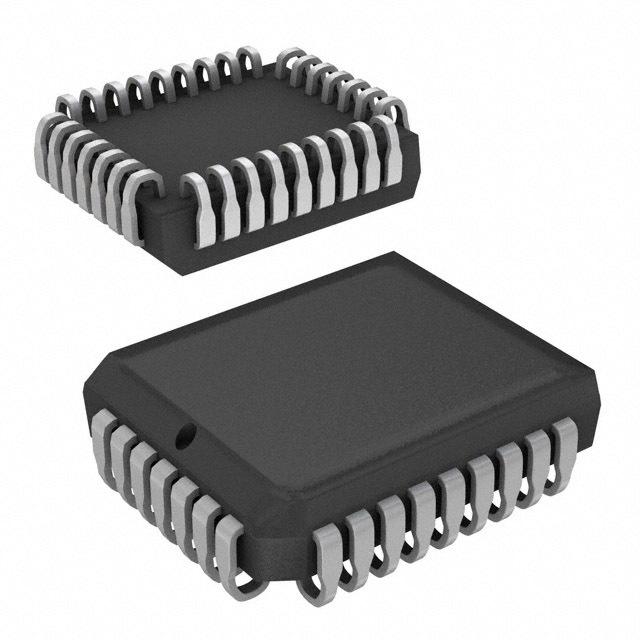

EPROM OTP 256Kbit 32K x 8 90ns 32Pin PLCC

Description

The AT27C256R is a low-power, high performance 262,144 bit one-time programmable read only memory OTP EPROM organized 32K by 8 bits. It requires only one 5V power supply in normal read mode operation. Any byte can be accessed in less than 45 ns, eliminating the need for speed reducing WAIT states on high performance microprocessor systems.

Features

•Fast Read Access Time - 45 ns

•Low Power CMOS Operation

  100 µA max. Standby

  20 mA max. Active at 5 MHz

•JEDEC Standard Packages

  28-Lead 600-mil PDIP

  32-Lead PLCC

  28-Lead TSOP and SOIC

•5V± 10% Supply

•High Reliability CMOS Technology

  2,000V ESD Protection

  200 mA Latchup Immunity

•Rapid Programming Algorithm - 100 µs/byte typical

•CMOS and TTL Compatible Inputs and Outputs

•Integrated Product Identification Code

•Commercial and Industrial Temperature Ranges
