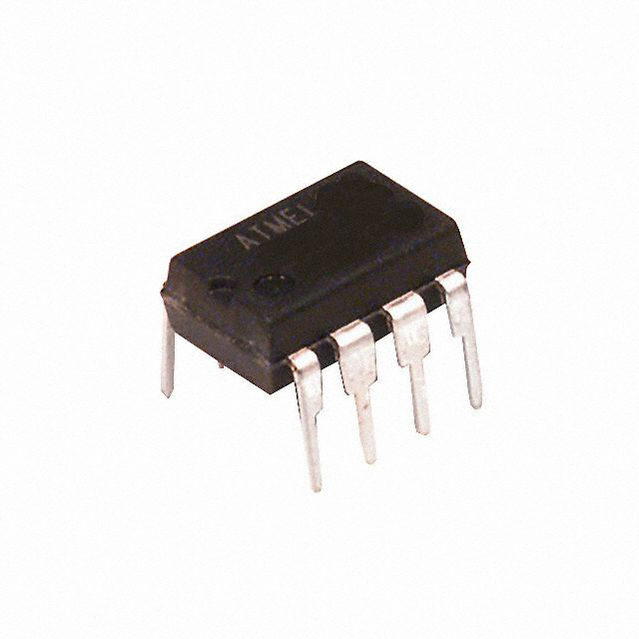

AT93C56A-10PI-2.7

EEPROM Serial-3Wire 2Kbit 256 x 8/128 x 16 3.3V/5V 8Pin PDIP

Description

The AT93C56A/66A provides 2048/4096 bits of serial electrically erasable programmable read-only memory EEPROM organized as 128/256 words of 16 bits each when the ORG pin is connected to VCC and 256/512 words of 8 bits each when it is tied to ground. The device is optimized for use in many industrial and commercial applications where low-power and low-voltage operations are essential. The AT93C56A/66A is available in space-saving 8-lead PDIP, 8-lead JEDEC SOIC, 8-lead EIAJ SOIC, 8-lead MAP, 8-lead TSSOP, and 8-ball dBGA2™ packages.

Features

• Low-voltage and Standard-voltage Operation

   – 2.7 VCC = 2.7V to 5.5V

   – 1.8 VCC = 1.8V to 5.5V

• User-selectable Internal Organization

   – 2K: 256 x 8 or 128 x 16

   – 4K: 512 x 8 or 256 x 16

• 3-wire Serial Interface

• Sequential Read Operation

• 2 MHz Clock Rate 5V

• Self-timed Write Cycle 10 ms Max

• High Reliability

   – Endurance: 1 Million Write Cycles

   – Data Retention: 100 Years

• Automotive Grade, Extended Temperature, and Lead-free/Halogen-free Devices Available

• 8-lead PDIP, 8-lead JEDEC SOIC, 8-lead EIAJ SOIC, 8-lead MAP, 8-lead TSSOP, and 8-ball dBGA2™ Packages
