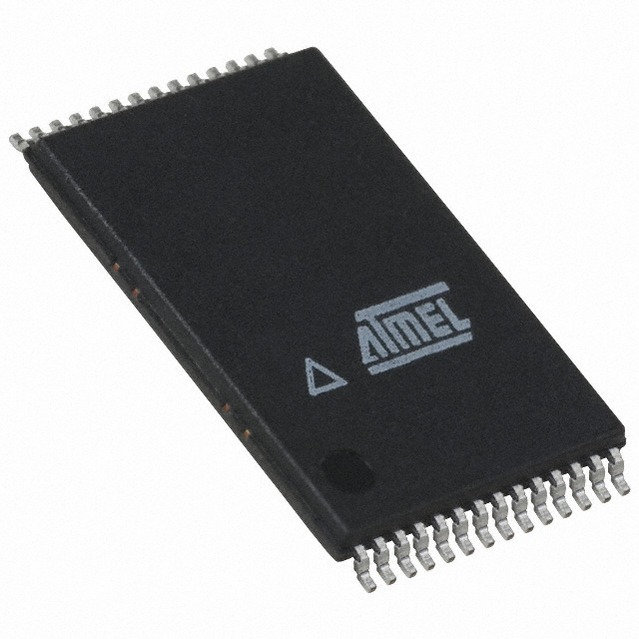

AT28C64B-15TI

EEPROM Parallel 64Kbit 8K x 8 5V 28Pin TSOP

Description

The AT28C64B is a high-performance electrically-erasable and programmable read only memory EEPROM. Its 64K of memory is organized as 8,192 words by 8 bits. Manufactured with Atmel’s advanced nonvolatile CMOS technology, the device offers access times to 150 ns with power dissipation of just 220 mW. When the device is deselected, the CMOS standby current is less than 100 µA.

Features

• Fast Read Access Time – 150 ns

• Automatic Page Write Operation

– Internal Address and Data Latches for 64 Bytes

• Fast Write Cycle Times

– Page Write Cycle Time: 10 ms Maximum Standard 2 ms Maximum Option – Ref. AT28HC64BF Datasheet

– 1 to 64-byte Page Write Operation

• Low Power Dissipation

– 40 mA Active Current

– 100 µA CMOS Standby Current

• Hardware and Software Data Protection

• DATAPolling and Toggle Bit for End of Write Detection

• High Reliability CMOS Technology

– Endurance: 100,000 Cycles

– Data Retention: 10 Years

• Single 5V ±10% Supply

• CMOS and TTL Compatible Inputs and Outputs

• JEDEC Approved Byte-wide Pinout

• Industrial Temperature Ranges

• Green Pb/Halide-free Packaging Option
