ADA4891-2ARZ-R7

低成本CMOS ，高速，轨到轨放大器 Low Cost CMOS, High Speed, Rail-to-Rail Amplifiers

Product Details

The ADA4891-1 single, ADA4891-2 dual, ADA4891-3 triple, and ADA4891-4 quad are CMOS, high speed amplifiers that offer high performance at a low cost. The amplifiers feature true single-supply capability, with an input voltage range that extends 300 mV below the negative rail.

In spite of their low cost, the ADA4891 family provides high performance and versatility. The rail-to-rail output stage enables the output to swing within 50 mV of each rail, enabling maximum dynamic range.

The ADA4891 family of amplifiers is ideal for imaging applications, such as consumer video, CCD buffers, and contact image sensor buffers. Low distortion and fast settling time also make them ideal for active filter applications.

The ADA4891-1/ADA4891-2/ADA4891-3/ADA4891-4 are available in a wide variety of packages.

The ADA4891-1 is available in 8-lead SOIC and 5-lead SOT-23 packages.

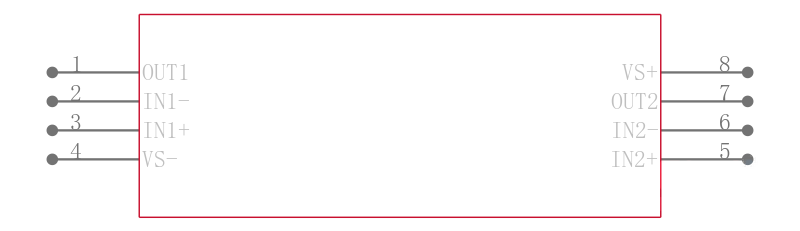

The ADA4891-2 is available in 8-lead SOIC and 8-lead MSOP packages.

The ADA4891-3 and ADA4891-4 are available in 14-lead SOIC and 14-lead TSSOP packages.

The amplifiers are specified to operate over the extended temperature range of −40°C to +125°C.

**Applications**

.

Imaging

.

Consumer video

.

Active filters

.

Coaxial cable drivers

.

Clock buffers

.

Photodiode preamp

.

Contact image sensor and buffers

### Features and Benefits

.

High speed and fast settling

−3 dB bandwidth: 220 MHz G = +1

Slew rate: 170 V/μs

Settling time to 0.1%: 28 ns

.

Video specifications G = +2, RL = 150 Ω

0.1 dB gain flatness: 25 MHz

Differential gain error: 0.05%

Differential phase error: 0.25°

.

Single-supply operation

Wide supply range: 2.7 V to 5.5 V

Output swings to within 50 mV of supply rails

.

Low distortion: 79 dBc SFDR at 1 MHz

.

Linear output current: 125 mA at −40 dBc

.

Low power:

4.4 mA per amplifier
