AD8646WARZ-R7

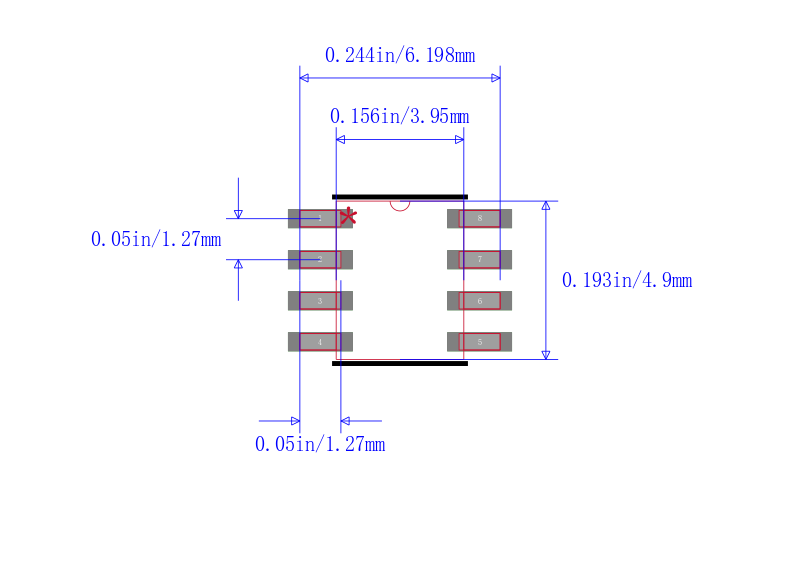

ANALOG DEVICES  AD8646WARZ-R7  运算放大器, 双路, AEC-Q100, 24 MHz, 2个放大器, 11 V/µs, 2.7V 至 5.5V, NSOIC, 8 引脚

Product Details

The AD8646 and the AD8647 are the dual, and the AD8648 is the quad, rail-to-rail, input and output, single-supply amplifiers featuring low offset voltage, wide signal bandwidth, low input voltage, and low current noise. The AD8647 also has a low power shutdown function.

The combination of 24 MHz bandwidth, low offset, low noise, and very low input bias current makes these amplifiers useful in a wide variety of applications. Filters, integrators, photodiode amplifiers, and high impedance sensors all benefit from the combination of performance features. AC applications benefit from the wide bandwidth and low distortion. The AD8646/AD8647/AD8648 offer high output drive capability, which is excellent for audio line drivers and other low impedance applications. The AD8646 and AD8648 are available for automotive applications see the Ordering Guide.

Applications include portable and low powered instrumentation, audio amplification for portable devices, portable phone headsets, barcode scanners, and multipole filters. The ability to swing rail to rail at both the input and output enables designers to buffer CMOS ADCs, DACs, ASICs, and other wide output swing devices in single-supply systems.

**Applications**

.

Battery-powered instruments

.

Multipole filters

.

ADC front ends

.

Sensors

.

Barcode scanners

.

ASIC input or output amplifiers

.

Audio amplifiers

.

Photodiode amplifiers

.

Datapath/mux/switch control

### Features and Benefits

.

Offset voltage: 2.5 mV maximum

.

Single-supply operation: 2.7 V to 5.5 V

.

Low noise: 8 nV/√Hz

.

Wide bandwidth: 24 MHz

.

Slew rate: 11 V/μs

.

Short-circuit output current: 120 mA

.

Qualified for automotive applications

.

No phase reversal

.

Low input bias current: 1 pA

.

Low supply current per amplifier: 2 mA maximum

.

Unity gain stable
