Difference Amplifiers, Analog Devices### 差动放大器### 差分放大器,Analog Devices
差分放大器、Analog Devices
得捷:
IC OPAMP DIFF 1 CIRCUIT 8MSOP
立创商城:
AD8276ARMZ
欧时:
Analog Devices AD8276ARMZ 差分放大器, 2 → 36 V电源, 550kHz, 轨到轨输出, 8引脚 MSOP封装
艾睿:
SP Amp Difference Amplifier Single ±18V/36V 8-Pin MSOP Tube
安富利:
SP Amp INSTR Amp Single R-R O/P ±18V/36V 8-Pin MSOP Tube
Chip1Stop:
SP Amp INSTR Amp Single R-R O/P ±18V/36V 8-Pin MSOP Tube
Verical:
SP Amp Difference Amplifier Single ±18V/36V 8-Pin MSOP Tube
Newark:
The AD8276ARMZ is a Wide supply Range Unity Gain Difference Amplifier intended for precision signal conditioning in power critical applications that require both high performance and low power. It provides exceptional common-mode rejection ratio 86dB and high bandwidth while amplifying signals well beyond the supply rails. The on-chip resistors are laser-trimmed for excellent gain accuracy and high CMRR. The common-mode range extends to almost double the supply voltage making the amplifier ideal for single supply applications that require a high common-mode voltage range. The internal resistors and ESD circuitry at the inputs also provide overvoltage protection to the op amp. While the amplifier is optimized for use as difference amplifier, it can also be connected in high precision, single-ended configurations with G = -1, +1, +2. The AD8276 provides an integrated precision solution that has smaller size and better performance than a discrete alternative.
DeviceMart:
IC AMP DIFF R-R 550KHZ LP 8MSOP
供电电流 200 µA
电路数 1
通道数 1
针脚数 8
共模抑制比 80 dB
带宽 550 kHz
转换速率 1.10 V/μs
增益频宽积 550 kHz
输入补偿电压 100 µV
工作温度Max 85 ℃
工作温度Min -40 ℃
增益带宽 550 kHz
共模抑制比Min 80 dB
电源电压 2V ~ 36V
电源电压Max 36 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 8

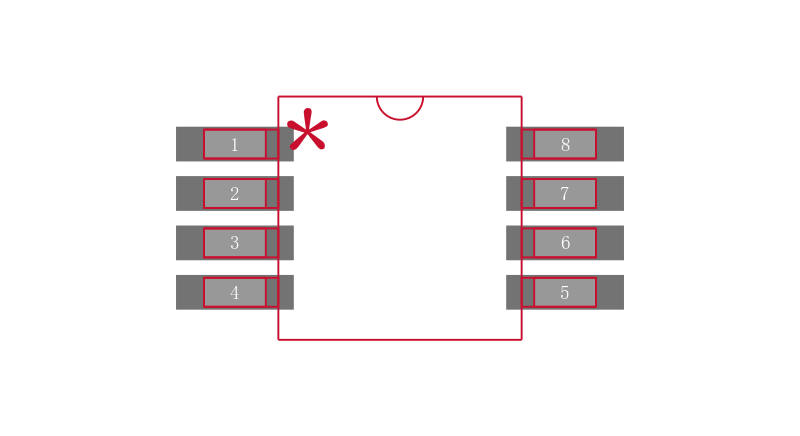

封装 MSOP-8

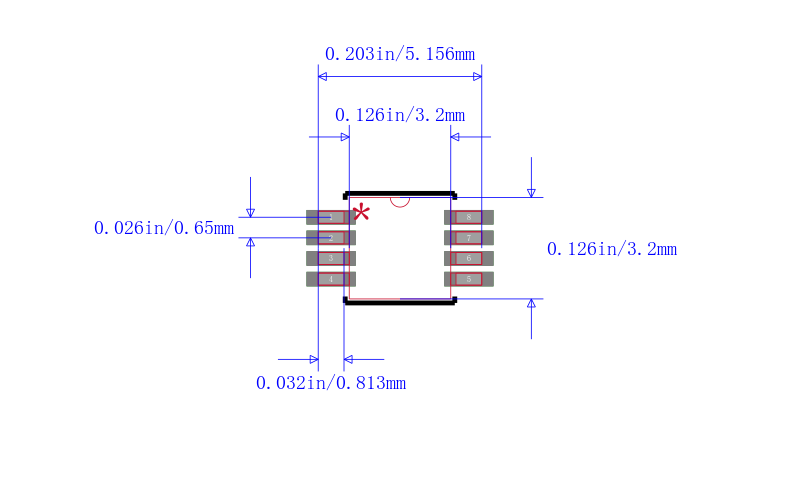

长度 3.2 mm
宽度 3.2 mm
高度 0.95 mm
封装 MSOP-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
制造应用 Signal Processing, 测试与测量, 系统监控, 便携式器材, 电源管理, Power Management, System Monitoring, Portable Devices, Test & Measurement, 信号处理
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
AD8276ARMZ ADI 亚德诺 | 当前型号 | 当前型号 |
AD8276ARMZ-R7 亚德诺 | 类似代替 | AD8276ARMZ和AD8276ARMZ-R7的区别 |
AD8276ARMZ-RL 亚德诺 | 类似代替 | AD8276ARMZ和AD8276ARMZ-RL的区别 |
AD8276ARZ 亚德诺 | 功能相似 | AD8276ARMZ和AD8276ARZ的区别 |
