ANALOG DEVICES AD8033AKSZ-REEL7 运算放大器, 单路, 80 MHz, 1个放大器, 80 V/µs, 5V 至 24V, SC-70, 5 引脚
The is a FastFET™ Voltage Feedback Amplifier with FET inputs, offering ease of use and excellent performance. The AD8033 is a single amplifier. The AD8033 FastFET op amps in Analog Devices, Inc., proprietary XFCB process offer significant performance improvements over other FET amps, such as low noise 11nV/√Hz and 0.7fA/√Hz and high speed 80MHz bandwidth and 80V/µs slew rate. With a wide supply voltage range from 5 to 24V and fully operational on a single supply. In addition, the AD8033 has rail-to-rail outputs for added versatility.
- .
- High speed
- .
- Low noise
- .
- 1mV Typical low offset voltage
- .
- Single-supply and rail-to-rail output
- .
- No phase reversal
- .
- 3.3mA/amplifier Typical supply current
供电电流 3.3 mA
电路数 1
通道数 1
针脚数 5
共模抑制比 100 dB
输入电容 2.30 pF
带宽 80 MHz
转换速率 80.0 V/μs
增益频宽积 45 MHz
输入阻抗 1.00 TΩ
输入补偿电压 1 mV
输入偏置电流 1.5 pA
工作温度Max 85 ℃
工作温度Min -40 ℃
3dB带宽 80 MHz
增益带宽 80 dB
共模抑制比Min 80 dB
电源电压 5V ~ 24V
电源电压Max 24 V
电源电压Min 5 V
安装方式 Surface Mount
引脚数 5

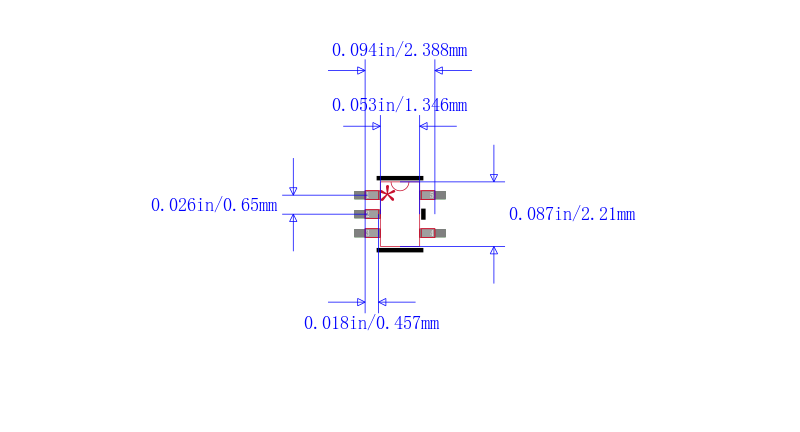

封装 SC-70-5
长度 2 mm
宽度 1.25 mm
高度 0.9 mm
封装 SC-70-5
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Signal Processing, Sensing & Instrumentation, 传感与仪器, 信号处理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 No
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
AD8033AKSZ-REEL7 ADI 亚德诺 | 当前型号 | 当前型号 |
AD8033AKS-R2 亚德诺 | 完全替代 | AD8033AKSZ-REEL7和AD8033AKS-R2的区别 |
AD8033AKSZ 亚德诺 | 完全替代 | AD8033AKSZ-REEL7和AD8033AKSZ的区别 |
AD8033AKSZ-R2 亚德诺 | 类似代替 | AD8033AKSZ-REEL7和AD8033AKSZ-R2的区别 |
